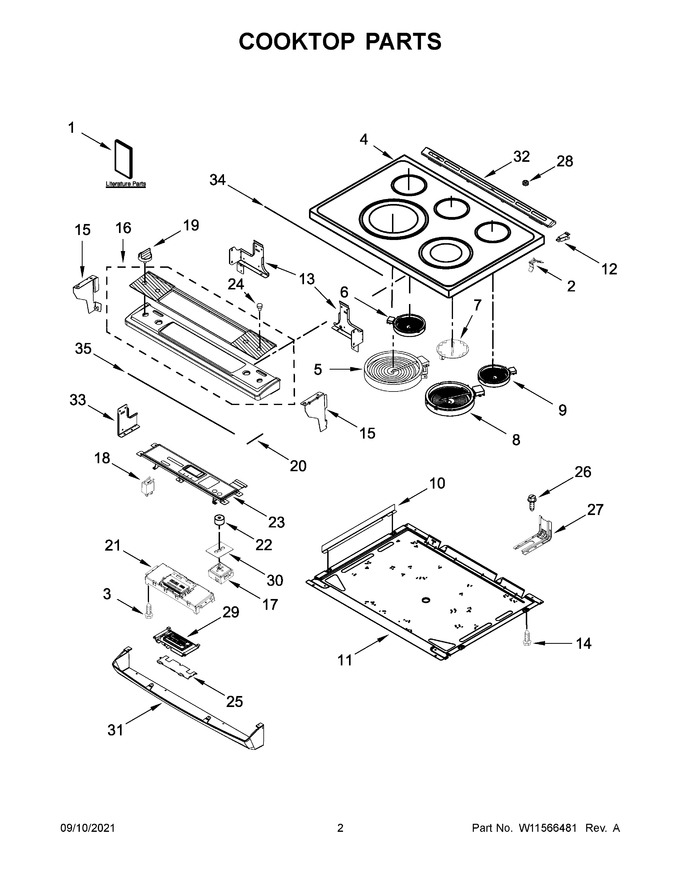

02 - Cooktop Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11509603 | Owners Manual |
|
- | |||||
| 2 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 3 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 4 | W11112610 | Cooktop (black) (Replaces: W10865119) |
|
$ 728.89 | |||||
| 5 | W10823720 | Element (3000w) (left Front) (Replaces: W10187839) |
|
Immediately | $ 336.57 | ||||
| 6 | WPW10342780 | Element (1300w) (left Rear & Right Rear) (Replaces: W10342780) |
|
Immediately | $ 145.32 | ||||
| 7 | W11041453 | Element, Warm Zone (center Rear) (Replaces: W10799048) |
|
$ 132.95 | |||||
| 8 | W11517959 | Element (3000w Dual) (right Front) (Replaces: W11282542) |
|
Immediately | $ 134.44 | ||||
| 9 | W11171119 | Element (1200w) (left Rear & Right Rear) (Replaces: 8273994) |
|
Immediately | $ 182.23 | ||||
| 10 | W11175271 | Bracket, Radiant |
|
$ 77.91 | |||||
| 11 | W10536275 | Pan, Radiant |
|
$ 181.61 | |||||
| 12 | W10162253 | Brace, Corner (left) |
|
$ 74.13 | |||||
| 13 | W10289170 | Support, Cooktop (left) |
|
$ 30.05 | |||||
| 14 | W11244557 | Screw (Replaces: 3196173) |
|
$ 14.29 | |||||
| 15 | W10547960 | Bracket, Console (left) |
|
$ 23.22 | |||||
| 16 | W11564645 | Assembly, Console (stainless) (Replaces: W11527532) |
|
Immediately | $ 255.39 | ||||
| 17 | W11129442 | Switch, Infinite (left Front) (Replaces: W10437097) |
|
Immediately | $ 100.57 | ||||
| 18 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 19 | W11517331 | Knob (stainless) (Replaces: W10850027) |
|
Immediately | $ 66.19 | ||||
| 20 | W11744482 | Gasket, Console Short (Replaces: W10689102) |
|
$ 22.92 | |||||
| 21 | W11564644 | Control, Electronic (maxwell) (Replaces: W11527165) |
|
Immediately | $ 502.35 | ||||
| 22 | W10702912 | Gasket, Switch Stem |
|
$ 29.82 | |||||
| 23 | W11564643 | Overlay, Active (black) (Replaces: W11527906) |
|
Immediately | $ 372.17 | ||||
| 24 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 25 | W10558372 | Bracket, Control |
|
$ 25.10 | |||||
| 26 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 27 | W11502257 | Bracket, Anti-tip (Replaces: W11379947) |
|
Immediately | $ 23.03 | ||||
| 28 | W11104127 | Bumper (Replaces: W10664705) |
|
Immediately | $ 21.97 | ||||
| 29 | W11122852 | Assembly, Display (Replaces: W10759327) |
|
Immediately | $ 527.64 | ||||
| 30 | 7201P07760 | Gasket, Infinite Switch |
|
- | |||||
| 31 | W11218703 | Console, Lower Panel (black) (Replaces: W10570527) |
|
Immediately | $ 162.27 | ||||
| 32 | W11240519 | Vent, Trim Top (black) (Replaces: W10636528) |
|
$ 157.19 | |||||
| 33 | W10598048 | Bracket, Console (center) |
|
$ 25.73 | |||||
| 34 | W10802441 | Gasket, Console/ Cooktop (Replaces: W10612719) |
|
Immediately | $ 22.73 | ||||
| 35 | W10802457 | Gasket, Console (Replaces: W10689101) |
|
$ 21.33 | |||||
| 12A | W10162252 | Brace, Corner (right) |
|
$ 78.59 | |||||
| 13A | W10289169 | Support, Cooktop (right) |
|
$ 30.05 | |||||
| 15A | W10547961 | Bracket, Console (right) |
|
$ 23.22 | |||||
| 17A | W10857622 | Switch, Infinite (right Front) (Replaces: W10437092) |
|
Immediately | $ 211.69 | ||||
| 17B | W10911303 | Switch, Infinite (right Rear) (Replaces: W10578768) |
|
Immediately | $ 104.64 | ||||
| 17C | W10917724 | Switch, Infinite (left Rear) (Replaces: W10437094) |
|
Immediately | $ 129.35 | ||||
| 1A | W11524749 | Quick Start Guide |
|
- | |||||
| 1B | W11523161 | Tech Sheet |
|
- | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 | |||||
| NI | W11761836 | Harness, Main (Replaces: W11454497) |
|
- | |||||
| NI | W11025616 | Harness, Keypad (Replaces: W10575120) |
|
Immediately | $ 53.35 | ||||
| NI | W10664316 | Clip, Harness (cooktop) |
|
$ 20.97 | |||||
| NI | W11226772 | Harness, Display (Replaces: W11172426) |
|
Immediately | $ 236.93 | ||||
| NI | W11226773 | Harness, Console (Replaces: W11172417) |
|
$ 211.70 | |||||
| NI | W11226786 | Harness, Cooktop (Replaces: W11134658) |
|
Immediately | $ 241.75 | ||||
| NI | NP | Cabinet (not Serviced) |
|
- |
