01 - Cover Sheet

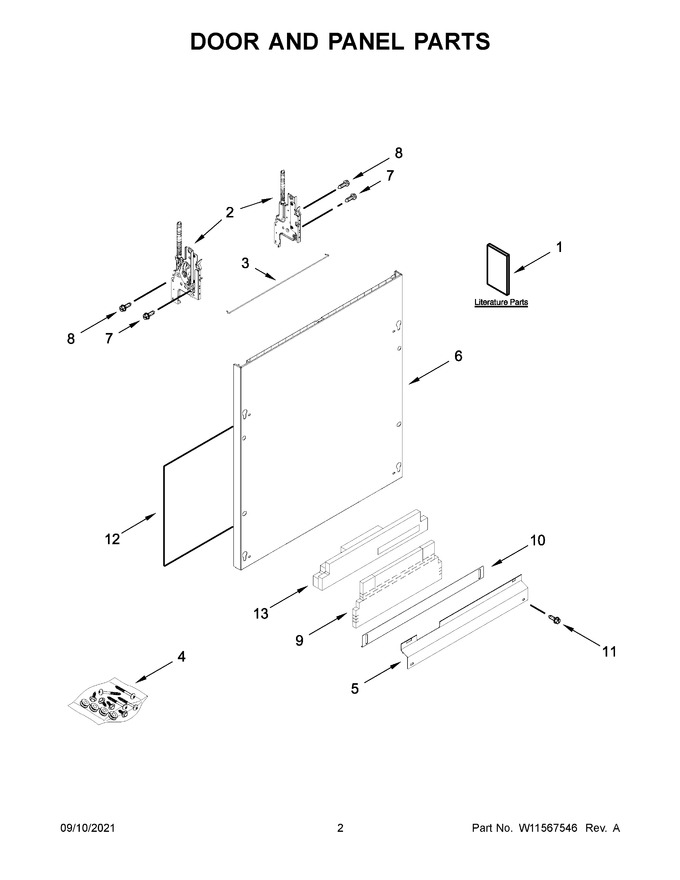

02 - Door And Panel Parts


03 - Control Panel And Inner Door Parts


04 - Tub And Frame Parts


05 - Pump, Washarm And Motor Parts


06 - Upper Wash And Rinse Parts


07 - Upper Rack And Track Parts


08 - Lower Rack Parts


09 - Third Level Rack And Track Parts


10 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11323304		Owners Manual		Appelez-nous	-
2	W11323124		Arm, Hinge (left)				$ 210.81
3	W11377160		Cross Brace, Door				$ 33.36
4	WPW10637074		Hardware, Custom Panel   (Replaces: W10195008)			Immediately	$ 75.05
5	W11545318		Access Panel (black)   (Replaces: W11108979)			Immediately	$ 27.90
6	W11505234		Panel, Front   (Replaces: W11326131)			Immediately	$ 339.58
7	W11676450		Screw   (Replaces: 3400000)				$ 14.76
8	WPW10309090		Screw   (Replaces: W11364953)			Immediately	$ 76.86
9	W11573704		Insulation, Single Layer   (Replaces: W11038694)			Immediately	$ 29.98
10	W11579528		Toe Panel (black)   (Replaces: W11108991)			Immediately	$ 32.90
11	W11551775		Screw, Black   (Replaces: W11438978)			Immediately	$ 15.43
12	W11298981		Insulation, Front Panel				$ 58.53
13	W11573700		Insulation, Multi-layer   (Replaces: W10919858)			Immediately	$ 44.89
1A	W11428464		Energy Guide		Appelez-nous	-
1B	W11366144		Tech Sheet		Appelez-nous	-
1C	W11460372		Template, Customer Panel				$ 141.81
2A	W11323123		Arm, Hinge (right)				$ 210.81
