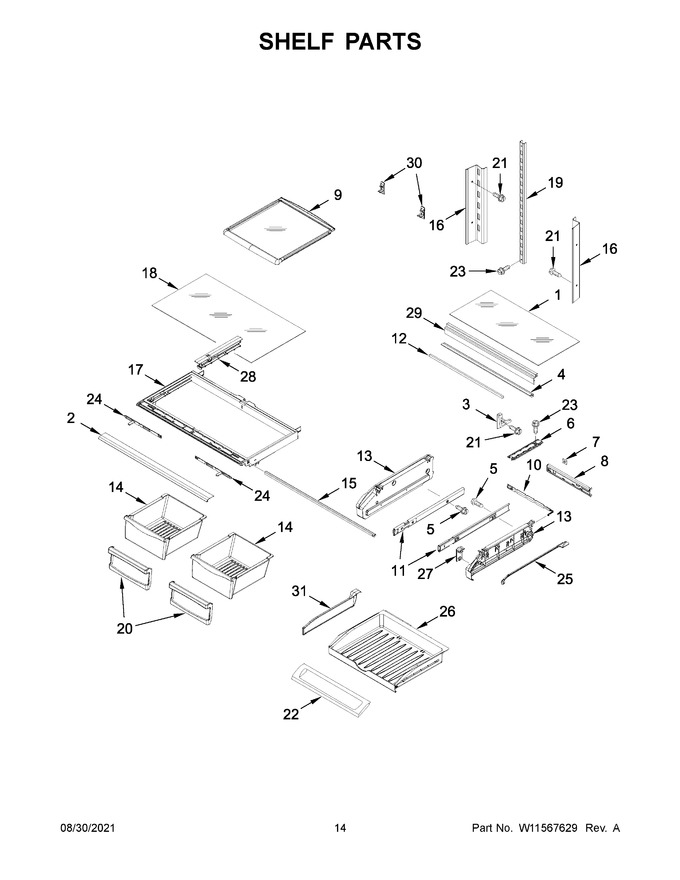

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10165870 | Glass, Pantry (Replaces: 12204820) |
|
$ 229.60 | |||||
| 2 | WPW10231343 | Trim, Crisper (Replaces: W10231343) |
|
Immediately | $ 99.65 | ||||
| 3 | WP67001721 | Support, Crisper (left Hand) (Replaces: 12531001) |
|
Immediately | $ 8.70 | ||||
| 4 | W10528936 | Support, Glass |
|
$ 36.73 | |||||
| 5 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 6 | WP67001719 | Track, Deli Drawer (Replaces: 12531901) |
|
Immediately | $ 8.99 | ||||
| 7 | 12656902 | Gasket, Pantry |
|
- | |||||
| 8 | W10165876 | Housing, Control (Replaces: 13048301) |
|
$ 80.87 | |||||
| 9 | W11358364 | Shelf, Glass |
|
- | |||||
| 10 | W10165882 | Slide, Temperature (Replaces: 13048401) |
|
$ 16.25 | |||||
| 11 | WPW10235370 | Glide, Pantry (Replaces: W10235370) |
|
Immediately | $ 199.80 | ||||
| 12 | W10783763 | Brace, Crisper Frame |
|
$ 93.93 | |||||
| 13 | W11222065 | Endcap, Pantry (left Hand) (Replaces: W11186157) |
|
Immediately | $ 53.64 | ||||
| 14 | WP67002633 | Pan, Crisper (Replaces: 12530505SP) |
|
Immediately | $ 149.12 | ||||
| 15 | WP12227303WD | Brace, Crisper Cover (Replaces: 12227303WD) |
|
$ 111.25 | |||||
| 16 | W10251968 | Ladder, Side (left Hand) |
|
$ 27.38 | |||||
| 17 | W10858393 | Frame, Crisper (Replaces: W10671241) |
|
Immediately | $ 143.78 | ||||
| 18 | WP67006878 | Glass, Crisper (Replaces: 12204822) |
|
Immediately | $ 185.19 | ||||
| 19 | W10273464 | Ladder, Center |
|
Immediately | $ 30.19 | ||||
| 20 | WP67005920 | Front, Crisper (Replaces: 12802302SP) |
|
Immediately | $ 78.32 | ||||
| 21 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 7.30 | ||||
| 22 | W10827914 | Lid, Pantry (Replaces: 12656823) |
|
Immediately | $ 174.01 | ||||
| 23 | WP67006415 | Screw (Replaces: 12990512) |
|
$ 8.38 | |||||
| 24 | WP67005864 | Slide, Humidity Control (Replaces: 12530805SP) |
|
Immediately | $ 8.20 | ||||
| 25 | W10165910 | Bar, Control (Replaces: 13048201) |
|
$ 15.47 | |||||
| 26 | W11513151 | Drawer, Pantry (Replaces: W11427807) |
|
Immediately | $ 139.07 | ||||
| 27 | W11498983 | Knob, Temperature Control (Replaces: 12655204) |
|
$ 30.64 | |||||
| 28 | WPW10671238 | Rail, Center Crisper (Replaces: W10671238) |
|
Immediately | $ 118.46 | ||||
| 29 | W11245261 | Trim, Pantry Glass (Replaces: 13048801) |
|
Immediately | $ 85.61 | ||||
| 30 | W11225839 | Hook, Ladder (left Hand) (Replaces: 13042603) |
|
Immediately | $ 33.81 | ||||
| 31 | WPW10165967 | Divider, Pantry Drawer (Replaces: 13048601SP) |
|
Immediately | $ 50.74 | ||||
| 13A | W11222066 | Endcap, Pantry (right Hand) (Replaces: W11185285) |
|
Immediately | $ 52.77 | ||||
| 16A | W10251965 | Ladder, Side (right Hand) |
|
$ 31.08 | |||||
| 30A | W10851309 | Hook, Ladder (right Hand) (Replaces: 13042604) |
|
Immediately | $ 8.28 | ||||
| 3A | WP67001722 | Support, Crisper (right Hand) (Replaces: 12531002) |
|
Immediately | $ 8.93 |
