01 - Cover Sheet

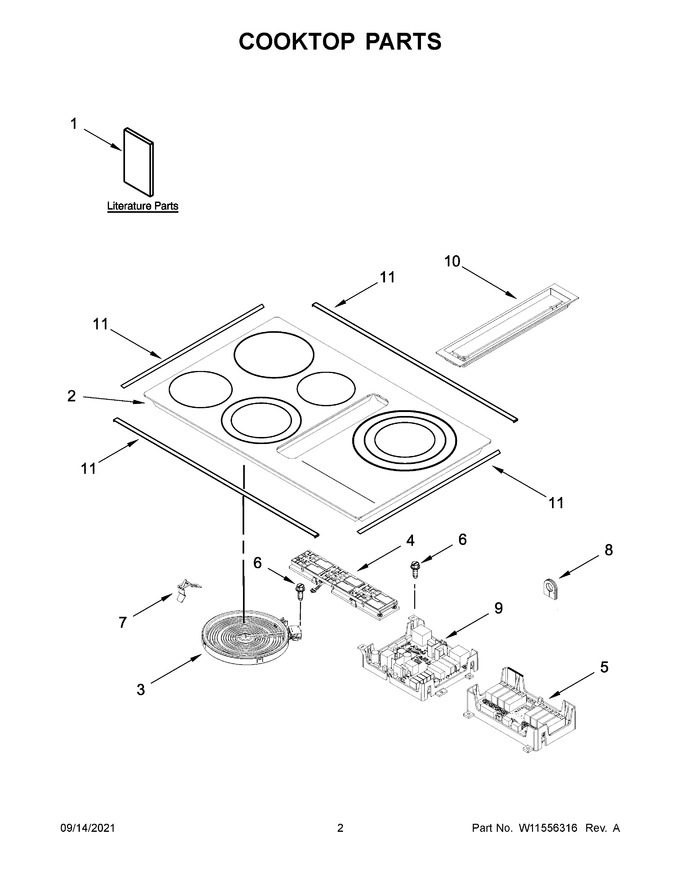

02 - Cooktop Parts
03 - Blower Unit Parts
04 - Burner Box Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11439177 | Instructions, User |
|
- | |||||
| 2 | W11557676 | Cooktop Assembly (black) (Replaces: W11406981) |
|
- | |||||
| 3 | WPW10342780 | Element (1300w) (left Front) (Replaces: W10342780) |
|
Immediately | $ 168.46 | ||||
| 4 | W11569459 | Assembly, Ui (Replaces: W11032485) |
|
- | |||||
| 5 | W11083952 | Control, Electronic (Replaces: W10817976) |
|
Immediately | $ 506.45 | ||||
| 6 | 7101P42660 | Screw |
|
- | |||||
| 7 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 8 | W10324729 | Grommet, Wire (gray) (large Hole) |
|
$ 9.03 | |||||
| 9 | W11556188 | Copernicus Appliance Manager (Replaces: W11539812) |
|
$ 347.74 | |||||
| 10 | W11476087 | Grille, Air (black) (Replaces: W10844354) |
|
Immediately | $ 417.00 | ||||
| 11 | W11093627 | Assembly, Trim (stainless Models Only) (stainless) (Replaces: W10836025) |
|
$ 328.06 | |||||
| 1A | W11439180 | Instructions, Installation |
|
- | |||||
| 1B | W11031714 | Sheet, Tech |
|
- | |||||
| 1C | W10917835 | Diagram, Wiring |
|
- | |||||
| 2A | W11557677 | Cooktop Assembly (stainless) (Replaces: W11406982) |
|
- | |||||
| 3A | WP8273993 | Element (1800w) (left Rear) (Replaces: 8273993) |
|
Immediately | $ 287.73 | ||||
| 3B | W11517959 | Element (3000/1400w) (left Front) (Replaces: W10275048) |
|
Immediately | $ 146.68 | ||||
| 3C | W11171119 | Element (1200w) (center Rear) (Replaces: 8273994) |
|
Immediately | $ 225.62 | ||||
| 3D | WPW10298145 | Element (4500w) (right Rear) (Replaces: W10298145) |
|
Immediately | $ 346.26 | ||||
| NI | NP | Following Parts Not Illustrated |
|
- | |||||
| NI | W11171892 | Harness, Main |
|
- | |||||
| NI | W11174860 | Harness, Cooktop Element |
|
- | |||||
| NI | W10909126 | Kit, Plenum Screw |
|
Immediately | $ 22.14 | ||||
| NI | WP8286642 | Tape, Foam (Replaces: 8286642) |
|
Immediately | $ 156.46 | ||||
| NI | W10491984 | Seal, Limiter (Replaces: 3192439) |
|
$ 12.05 | |||||
| NI | 7101P46060 | Screw, Grounding |
|
- |
