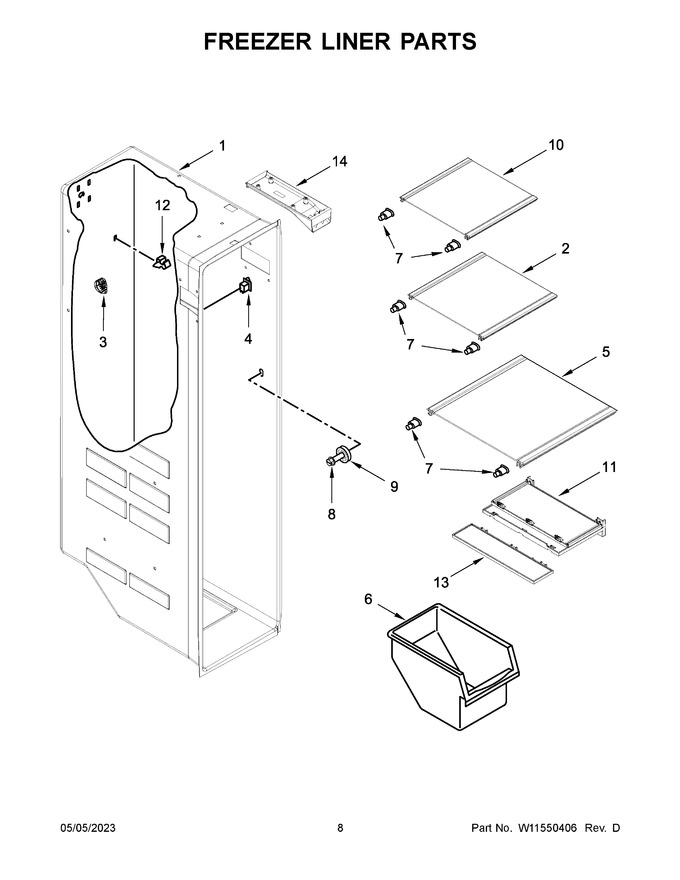

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
2	W10912336		Shelf, Glass (middle)		Appelez-nous	-
3	W11602886		Light Module, Led   (Replaces: W11549780)				$ 42.63
4	W11396033		Switch, Light   (Replaces: W10847849)			Immediately	$ 37.30
5	W11575702		Shelf, Glass (bottom)   (Replaces: W11454956)		Appelez-nous	-
6	W11577967		Bin, Freezer   (Replaces: W11427432)				$ 96.30
7	WPW10130299		Cup, Shelf   (Replaces: W10130299)			Immediately	$ 14.70
8	W10191952		Screw				$ 5.65
9	W11223328		Assembly, Stud   (Replaces: 2196208)			Immediately	$ 14.77
10	W10758884		Shelf, Glass (top)		Appelez-nous	-
11	W11216934		Assembly, Pizza Pocket   (Replaces: W11183656)				$ 89.44
12	2215823		Clip, Air Duct   (Replaces: 2315163)				$ 10.94
13	W11318231		Pivoting Shelf   (Replaces: W11108242)		Appelez-nous	-
14	W11084314		Duct Air, Freezer				$ 103.06
