01 - Cover Sheet

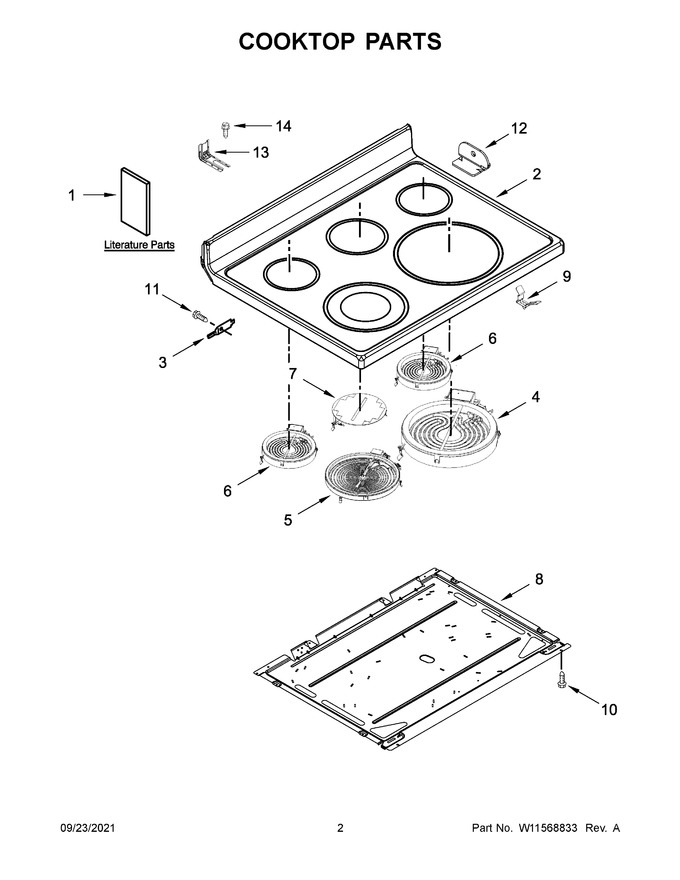

02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11432242		Owners Manual		Appelez-nous	-
2	W10691697		Cooktop (white)   (Replaces: W10655914)				$ 590.94
3	WP3195060		Hinge, Cooktop   (Replaces: 3195060)			Immediately	$ 13.18
4	WPW10251108		Element (3200w) (right Front)   (Replaces: W10251108)			Immediately	$ 223.66
5	WPW10535150		Element (3000w, 1000/2000w) (left Front)   (Replaces: W10535150)			Immediately	$ 251.12
6	W11171119		Element (1200w) (right Rear)   (Replaces: W10248261)			Immediately	$ 182.23
7	W11041453		Element, Warm Zone (center Rear)   (Replaces: W10799048)				$ 132.95
8	W11728329		Pan, Radiant Element   (Replaces: W10691223)			Immediately	$ 143.49
9	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 10.40
10	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
11	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
12	W10607641		Bracket, Cooktop (left)				$ 33.52
13	W11839019		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 28.54
14	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
12A	W10607642		Bracket, Cooktop (right)		Appelez-nous	-
1A	W11401667		Tech Sheet		Appelez-nous	-
1B	W11469630		Quick Start Guide		Appelez-nous	-
NI	W11188418		Harness, Cooktop (left)				$ 223.37
NI	W11188421		Harness, Cooktop (right)			Immediately	$ 214.26
NI	W11454302		Main Harness				$ 209.48
NI	NP		Cabinet (not A Serviceable Part)		Appelez-nous	-
NI	W11212183		Harness, Sensor				$ 235.64
NI	W11134592		Harness, Warm Zone				$ 117.26
