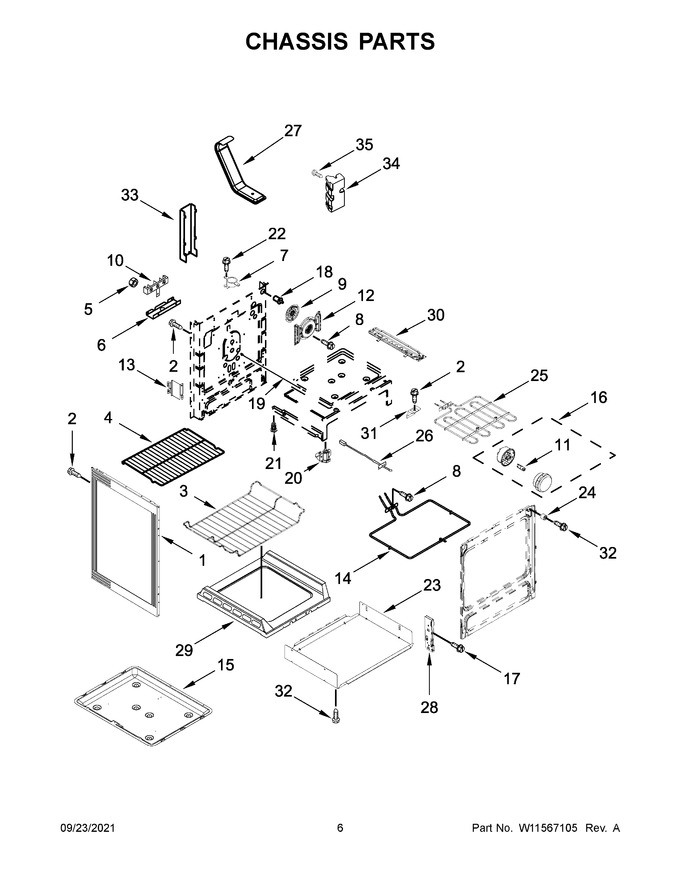

04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11730303 | Panel, Side (black) (Replaces: W10162245) |
|
Immediately | $ 178.50 | ||||
| 2 | 3196172 | Screw |
|
Immediately | $ 13.47 | ||||
| 3 | W11256463 | Rack, Oven (gull-wing) (Replaces: W10289145) |
|
Immediately | $ 132.50 | ||||
| 4 | WPW10531060 | Rack, Oven (Replaces: W10531060) |
|
Immediately | $ 122.16 | ||||
| 5 | WP3400029 | Nut (Replaces: 3400029) |
|
Immediately | $ 8.19 | ||||
| 6 | W11763591 | Bracket, Service (Replaces: 3186034) |
|
- | |||||
| 7 | WP3196548 | Fuse, Thermal (Replaces: 3196548) |
|
Immediately | $ 50.10 | ||||
| 8 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 14.72 | ||||
| 9 | W10903746 | Assembly, Convection (Replaces: W10756304) |
|
Immediately | $ 184.58 | ||||
| 10 | WPW10245259 | Block, Terminal (Replaces: W10245259) |
|
Immediately | $ 35.17 | ||||
| 11 | WPW10571723 | Bulb, Halogen 40 Watts (Replaces: W10571723) |
|
Immediately | $ 27.71 | ||||
| 12 | W11676564 | Baffle, Full Convection (Replaces: W10346153) |
|
$ 234.02 | |||||
| 13 | W10273002 | Bracket, Oven Support |
|
$ 76.34 | |||||
| 14 | W10779716 | Element, Bake (Replaces: W10774342) |
|
Immediately | $ 61.45 | ||||
| 15 | W11379357 | Bake Pan |
|
Immediately | $ 82.86 | ||||
| 16 | W11594170 | Light Assembly (Replaces: W11430367) |
|
Immediately | $ 35.95 | ||||
| 17 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 18 | WP9757262 | Switch, Door (Replaces: W10627802) |
|
Immediately | $ 144.44 | ||||
| 19 | W11370463 | Rod, Door Switch |
|
Immediately | $ 66.87 | ||||
| 20 | WPW10341186 | Front Foot Assembly (Replaces: W10341186) |
|
Immediately | $ 32.59 | ||||
| 21 | WPW10058460 | Foot, Leveling (Replaces: W10058460) |
|
Immediately | $ 8.24 | ||||
| 22 | 3196172 | Screw |
|
Immediately | $ 13.47 | ||||
| 23 | W10726740 | Shield, Heat |
|
$ 145.01 | |||||
| 24 | W10877054 | Spacer, Door (Replaces: 9758701) |
|
Immediately | $ 56.06 | ||||
| 25 | W11321472 | Element, Broil (Replaces: W11095929) |
|
Immediately | $ 112.54 | ||||
| 26 | W10833885 | Sensor (Replaces: W10586204) |
|
Immediately | $ 140.71 | ||||
| 27 | WPW10134285 | Tube, Vent (Replaces: W10134285) |
|
Immediately | $ 263.00 | ||||
| 28 | W10647259 | Receiver, Hinge (Replaces: W10289077) |
|
Immediately | $ 9.32 | ||||
| 29 | W10777210 | Bottom, Oven (Replaces: W10774446) |
|
Immediately | $ 164.22 | ||||
| 30 | W11818353 | Base Rail Assembly (right) (Replaces: W10390007) |
|
$ 62.66 | |||||
| 31 | W10035900 | Support, Oven Bottom |
|
$ 14.36 | |||||
| 32 | W11169708 | Screw (Replaces: 3196560) |
|
$ 13.36 | |||||
| 33 | WPW10326122 | Cover, Terminal Block (Replaces: W10326122) |
|
$ 139.60 | |||||
| 34 | W11135752 | Counterweight (Replaces: W10910404) |
|
Immediately | $ 153.79 | ||||
| 35 | W11135756 | Screw (Replaces: W11034869) |
|
$ 14.73 | |||||
| 30A | W11818353 | Base Rail Assembly (left) (Replaces: W10390008) |
|
$ 62.66 | |||||
| NI | 4820F01559 | Insulation, Strap |
|
- | |||||
| NI | WPW10194393 | Insulation, Wrap (Replaces: W10194393) |
|
$ 129.15 | |||||
| NI | WPW10281322 | Kit, Bare Wire Adapter Block (Replaces: W10281322) |
|
$ 8.87 | |||||
| NI | WPW10225523 | Insulation, Bottom (Replaces: W10225523) |
|
$ 120.25 | |||||
| NI | NP | Cabinet (not A Serviceable Part) |
|
- | |||||
| NI | WPW10225524 | Insulation, Back (Replaces: W10225524) |
|
$ 114.68 |
