SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)

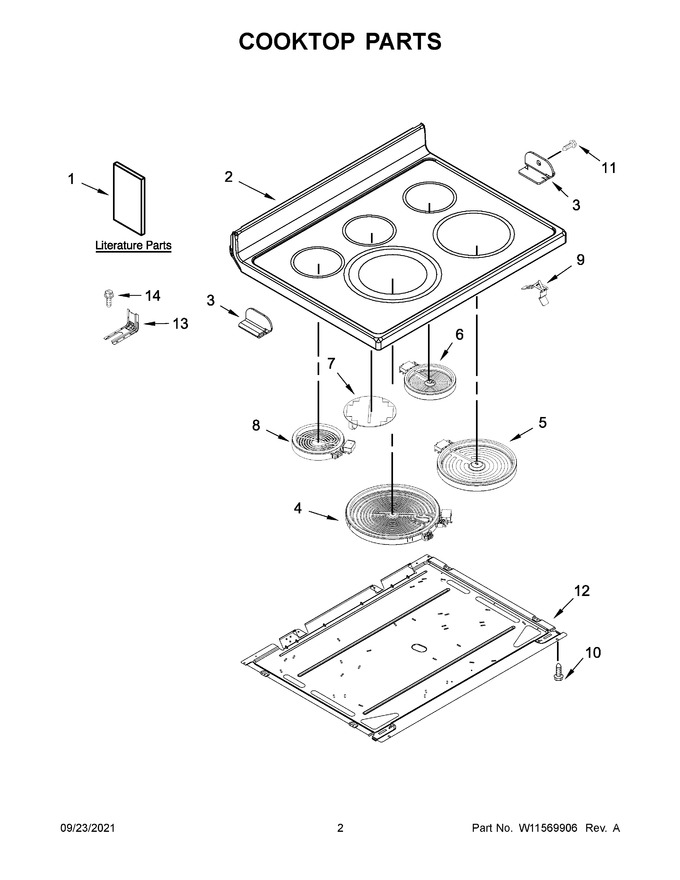

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11509613		Use And Care Guide		Appelez-nous	-
2	W10794931		Cooktop (white)   (Replaces: W10697350)				$ 725.21
3	W10607641		Bracket, Cooktop (left)				$ 33.52
4	W10823727		Element (3000w) (left Front)   (Replaces: W10711900)			Immediately	$ 342.63
5	W11517959		Element (3000/1400w) (right Front)   (Replaces: W10275048)			Immediately	$ 134.44
6	W11171119		Element (1200w) (right Rear)   (Replaces: W10248261)			Immediately	$ 182.23
7	W11041453		Element, Warm Zone (center Rear)   (Replaces: W10799048)				$ 132.95
8	WPW10342780		Element (1300w) (left Rear)   (Replaces: W10342780)			Immediately	$ 145.32
9	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 10.40
10	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
11	3196172		Screw			Immediately	$ 13.47
12	W11728329		Pan, Radiant Element   (Replaces: W10691223)			Immediately	$ 143.49
13	W11839019		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 28.54
14	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
1A	W11489748		Quick Start Guide		Appelez-nous	-
1B	W11393917		Tech Sheet		Appelez-nous	-
3A	W10607642		Bracket, Cooktop (right)		Appelez-nous	-
NI	W11212183		Harness, Sensor				$ 235.64
NI	W11188424		Harness, Cooktop (left)		Appelez-nous	-
NI	W11454490		Harness, Main		Appelez-nous	-
NI	W11134592		Harness, Warm Zone				$ 117.26
NI	NP		Cabinet (not A Serviceable Part)		Appelez-nous	-
NI	W11134550		Harness, Cooktop (right)				$ 228.90

    View Diagram in Separate Window       Print Part List
