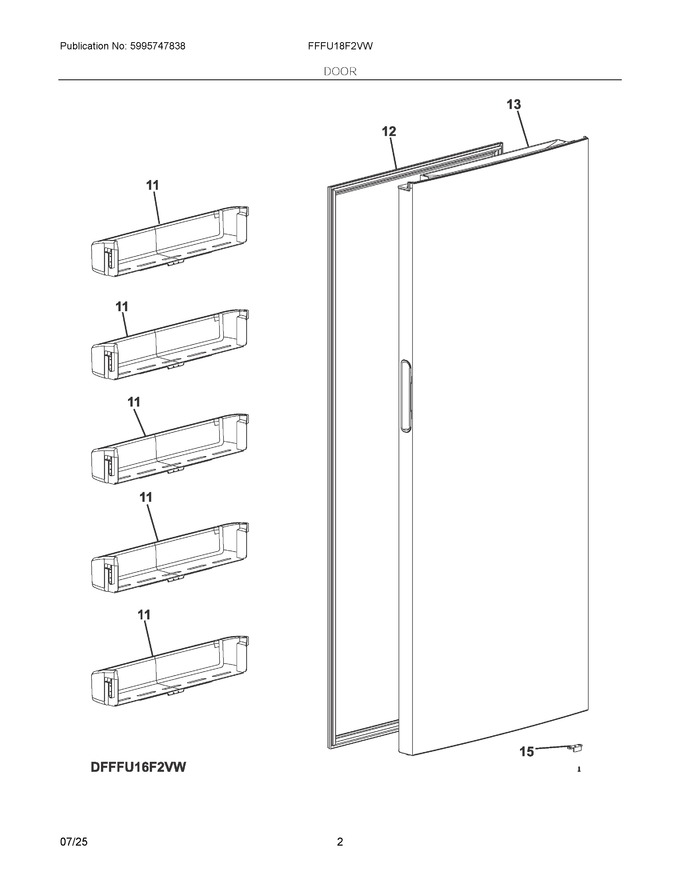

02 - Door
03 - Cabinet
04 - System
05 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 5304521519 | Bin, Door |
|
Immediately | $ 135.33 | ||||
| 12 | 5304529925 | Gasket, Door |
|
$ 234.16 | |||||
| 13 | 5304529924 | Door Assembly, Outer, White |
|
$ 560.59 | |||||
| 15 | 5304521523 | Bearing |
|
Immediately | $ 41.93 | ||||
| NI | 4056034137 | Hole Cover, Door, Positioning, Block |
|
- | |||||
| NIA | 5304518572 | Badge, Nameplate, White |
|
$ 82.31 |
