SELECT A DIAGRAM

01 - Cover Sheet

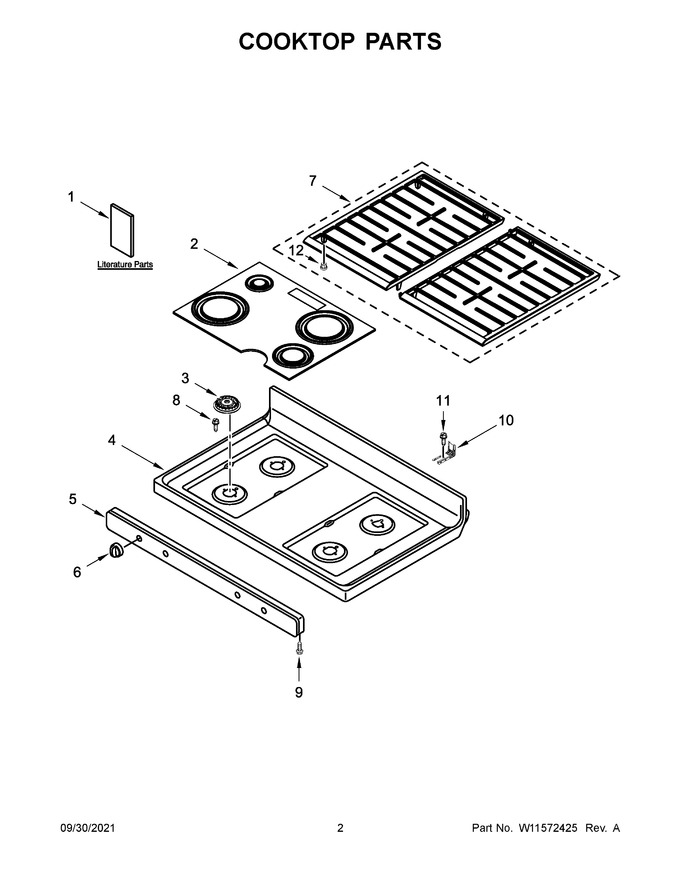

02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Manifold Parts


06 - Door Parts


07 - Drawer Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11426600		Owner's Manual		Appelez-nous	-
2	W11455147		Set, Burner Cap (black (set Of 4))   (Replaces: W11395131)			Immediately	$ 99.73
3	W11435630		Spreader, Flame (left Front & Right Front)   (Replaces: W11352018)			Immediately	$ 82.12
4	W11455651		Cooktop (black)   (Replaces: W11418089)				$ 420.40
5	W11244426		Panel, Manifold (black)   (Replaces: W11089575)		Appelez-nous	-
6	W11159631		Knob, Control (black)   (Replaces: W11023140)				$ 77.45
7	W11394363		Kit, Grate (set Of 2) (black)   (Replaces: W11241653)				$ 357.58
8	W11241230		Screw   (Replaces: W10673618)			Immediately	$ 14.73
9	WP3196557		Screw   (Replaces: 3196557)			Immediately	$ 7.95
10	W11839019		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 28.54
11	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
12	W10919249		Grate, Bumper   (Replaces: W10465081)			Immediately	$ 13.18
1A	W11402529		Tech Sheet		Appelez-nous	-
1B	W11427476		Quick Start Guide		Appelez-nous	-
3A	W11435659		Spreader, Flame (left Rear)   (Replaces: W11352020)				$ 84.85
3B	W11435657		Spreader, Flame (right Rear)   (Replaces: W11352021)				$ 84.43
NI	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
NI	W10334923		Clip, Gas Wiring		Appelez-nous	-
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 89.00
NI	3196896		Clip, Wire		Appelez-nous	-
NI	W11244557		Screw (grounding)   (Replaces: 3196173)				$ 14.29
NI	W11507573		Harness, Main		Appelez-nous	-
NI	W11645866		Harness, Bake/broil   (Replaces: W11450461)				$ 38.49
NI	NP		Cabinet (not A Servicable Part)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
