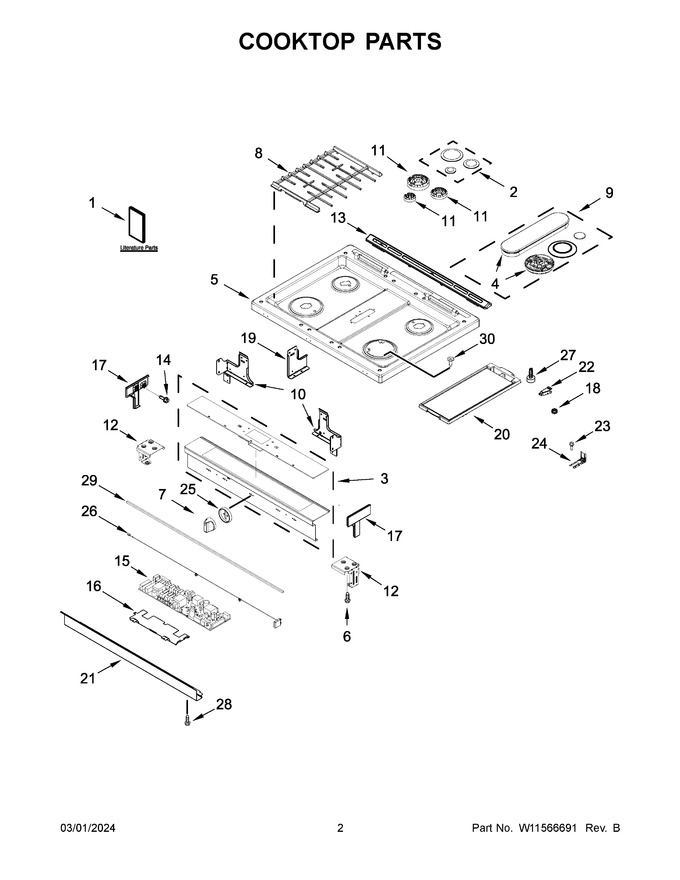

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11428052		Quick Start Guide		Appelez-nous	-
2	W11834855		Caps, Burner (black (set Of 3) (left Front, Left Rear, Right Rear))   (Replaces: W11367440)		Appelez-nous	-
3	W11339759		Console (black)   (Replaces: W11295848)				$ 1,382.56
4	W11245289		Spreader, Flame (right Front)   (Replaces: W10867781)				$ 285.55
5	W11548508		Cooktop (black)   (Replaces: W11511787)				$ 430.63
6	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.55
7	W11121968		Knob (black)   (Replaces: W10906399)				$ 79.57
8	W11548766		Grate Kit (includes 2 Grates) (black)   (Replaces: W11160332)			Immediately	$ 387.29
9	W11550541		Spreader, Flame Kit (includes Burner Caps) (right Front And Center)   (Replaces: W11495472)			Immediately	$ 282.11
10	W10867593		Support, Cooktop (left)		Appelez-nous	-
11	W11531096		Flame Spreader (left Front)   (Replaces: W11352193)				$ 81.92
12	W10828159		Base, Console (left)		Appelez-nous	-
13	W11256338		Trim, Vent (black)   (Replaces: W10577781)				$ 205.56
14	W11245710		Screw   (Replaces: 9780274)			Immediately	$ 14.75
15	W11205353		Control, Electronic (powermax)   (Replaces: W10868154)			Immediately	$ 548.33
16	W10908536		Bracket, Control				$ 79.22
17	W10854354		Endcap (black (left))		Appelez-nous	-
18	W11690600		Bumper   (Replaces: W10854253)			Immediately	$ 14.91
19	W10867600		Bracket, Console (center)				$ 81.75
20	W11123246		Griddle   (Replaces: W11043399)				$ 102.52
21	W10899344		Console, Lower Panel (black)				$ 93.79
22	W10162253		Brace, Corner (left)				$ 74.13
23	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
24	W11502257		Bracket, Anti-tip   (Replaces: W11379947)			Immediately	$ 23.03
25	W10906019		Bezel (black)		Appelez-nous	-
26	W11217194		Antenna   (Replaces: W11174221)				$ 217.36
27	8016P02260		Glide, Main Top		Appelez-nous	-
28	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
29	W10802441		Gasket, Console And Cooktop   (Replaces: W10612719)			Immediately	$ 22.73
30	W11818021		Screw   (Replaces: W11103318)			Immediately	$ 12.34
10A	W10867592		Support, Cooktop (right)		Appelez-nous	-
11A	W11531097		Flame Spreader (left Rear)   (Replaces: W11352195)				$ 81.15
11B	W11531098		Flame Spreader (right Rear)   (Replaces: W11352197)				$ 80.72
12A	W10828160		Base, Console (right)		Appelez-nous	-
13A	W10577780		Trim, Vent (white)				$ 228.68
17A	W10854355		Endcap (white (left))				$ 75.51
17B	W10854358		Endcap (black (right))		Appelez-nous	-
17C	W10854359		Endcap (white (right))				$ 78.15
1A	W11498994		Owners Manual		Appelez-nous	-
1B	W10344400		Tech, Sheet		Appelez-nous	-
22A	W10162252		Brace, Corner (right)				$ 78.59
25A	W10906018		Bezel (white)				$ 61.57
3A	W11339758		Console (white)   (Replaces: W11293147)			Immediately	$ 1,317.71
4A	W11548764		Spreader, Flame (fish) (center)   (Replaces: W11357364)				$ 161.72
5A	W11620413		Cooktop (white)   (Replaces: W11511788)				$ 530.71
7A	W11121969		Knob (white)   (Replaces: W10906400)				$ 79.76
NI	7111P01760		Clamp, Wire		Appelez-nous	-
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
NI	W10887379		Harness, Main				$ 224.96
NI	W11198972		Harness, Bake And Broil   (Replaces: W10754419)				$ 35.84
NI	W10580229		Wire, Ground				$ 38.22
NI	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 89.00
NI	3196896		Clip, Wire		Appelez-nous	-
