01 - Cover Sheet

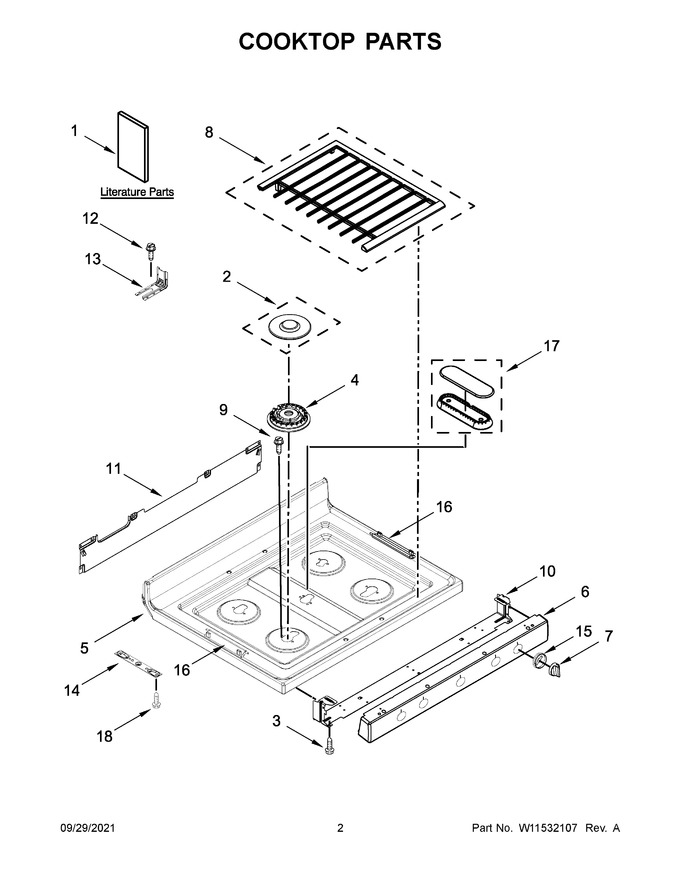

02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Manifold Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11426597 | Owner's Manual |
|
- | |||||
| 2 | W11834859 | Burner Cap Kit (black (set Of 4)) (Replaces: W11352138) |
|
- | |||||
| 3 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 8.30 | |||||
| 4 | W11435630 | Spreader, Flame (left Front & Right Front) (Replaces: W11352018) |
|
Immediately | $ 82.12 | ||||
| 5 | W11459372 | Cooktop (includes Hinges) (black) (Replaces: W11418087) |
|
$ 452.91 | |||||
| 6 | W10904610 | Panel, Manifold (stainless) (Replaces: W10864528) |
|
- | |||||
| 7 | W11122880 | Knob (stainless) (Replaces: W10862482) |
|
Immediately | $ 26.82 | ||||
| 8 | W11381653 | Grate Kit (black(set Of 2)) (Replaces: W11241659) |
|
$ 411.25 | |||||
| 9 | W11241230 | Screw (Replaces: W10673618) |
|
Immediately | $ 14.73 | ||||
| 10 | W11379946 | Manifold Panel Bracket |
|
- | |||||
| 11 | W11379358 | Rear Gas Cooktop Bracket |
|
- | |||||
| 12 | W11839019 | Bracket, Anti-tip (Replaces: W11379945) |
|
Immediately | $ 28.54 | ||||
| 13 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 14 | W10879790 | Grate Hinge Spacer |
|
- | |||||
| 15 | W11188712 | Bezel (Replaces: W10850043) |
|
Immediately | $ 61.48 | ||||
| 16 | NP | Cabinet (not A Servicable Part) |
|
- | |||||
| 17 | W11435660 | Spreader, Flame (center) (Replaces: W11367086) |
|
Immediately | $ 98.56 | ||||
| 18 | WPW10132940 | Screw (Replaces: 3196184) |
|
$ 10.12 | |||||
| 1A | W11427475 | Quick Start Guide |
|
- | |||||
| 1B | W11336169 | Tech Sheet |
|
- | |||||
| 4A | W11435659 | Spreader, Flame (left Rear) (Replaces: W11352020) |
|
$ 84.85 | |||||
| 4B | W11435657 | Spreader, Flame (right Rear) (Replaces: W11352021) |
|
$ 84.43 | |||||
| NI | W10334923 | Clip, Gas Wiring |
|
- | |||||
| NI | 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 89.00 | |||||
| NI | 3196896 | Clip, Wire |
|
- | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 | |||||
| NI | W11161843 | Harness, Bake/broil (Replaces: W10753750) |
|
$ 216.55 | |||||
| NI | NP | Cabinet (not A Servicable Part) |
|
- | |||||
| NI | W11451587 | Harness, Main |
|
- |
