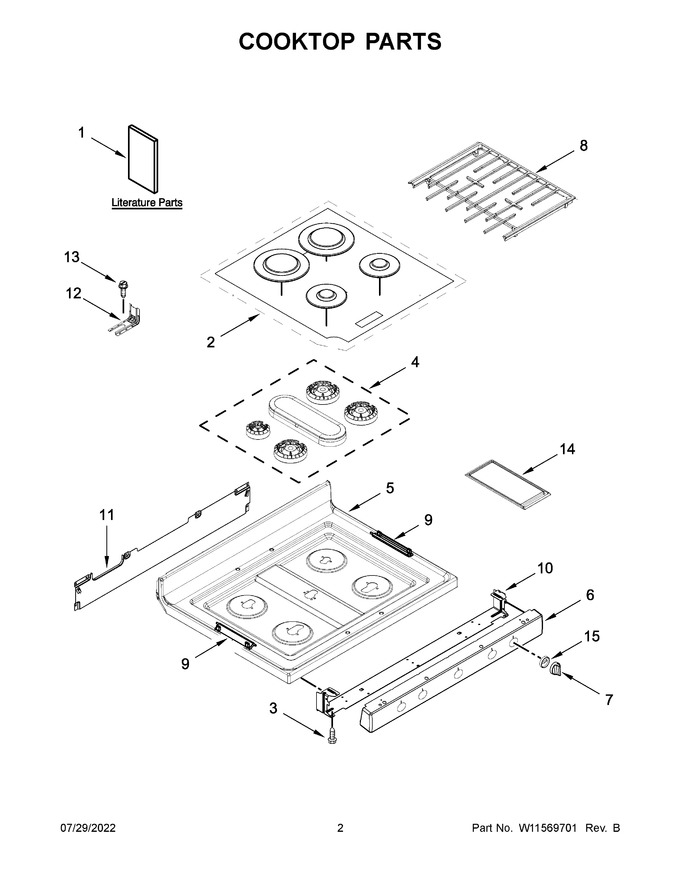

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11426598		Owners Manual		Appelez-nous	-
2	W11605759		Burner Cap Kit (black (set Of 4) (left Front, Left Rear, Right Front, Right Rear))   (Replaces: W11498499)			Immediately	$ 75.35
3	WPW10067840		Screw   (Replaces: W10067840)				$ 8.30
4	W11662402		Burner Kit   (Replaces: W11367106)			Immediately	$ 130.11
5	W11454367		Cooktop (black)   (Replaces: W11418086)			Immediately	$ 435.20
6	W11028196		Panel, Manifold (stainless)   (Replaces: W10861559)		Appelez-nous	-
7	W11190815		Knob (stainless)   (Replaces: W10858253)			Immediately	$ 73.51
8	W11381652		Grate Kit (black (set Of 2))   (Replaces: W11241655)				$ 387.72
9	NP		Cabinet (not A Serviceable Part)		Appelez-nous	-
10	W11379946		Manifold Panel Bracket		Appelez-nous	-
11	W11379358		Rear Gas Cooktop Bracket		Appelez-nous	-
12	W11839019		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 28.54
13	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
14	W10432544		Griddle			Immediately	$ 56.67
15	W11223011		Bezel (stainless)   (Replaces: W10876919)			Immediately	$ 63.89
1A	W11382213		Tech Sheet		Appelez-nous	-
1B	W11427470		Quick Start Guide (english)		Appelez-nous	-
NI	W11451587		Harness, Main		Appelez-nous	-
NI	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
NI	W10334923		Clip, Gas Wiring		Appelez-nous	-
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 89.00
NI	3196896		Clip, Wire		Appelez-nous	-
NI	NP		Cabinet (not A Serviceable Part)		Appelez-nous	-
NI	W11161843		Harness, Bake/broil   (Replaces: W10753750)				$ 216.55
NI	7111P01760		Clamp, Wire		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
