01 - Cover Sheet

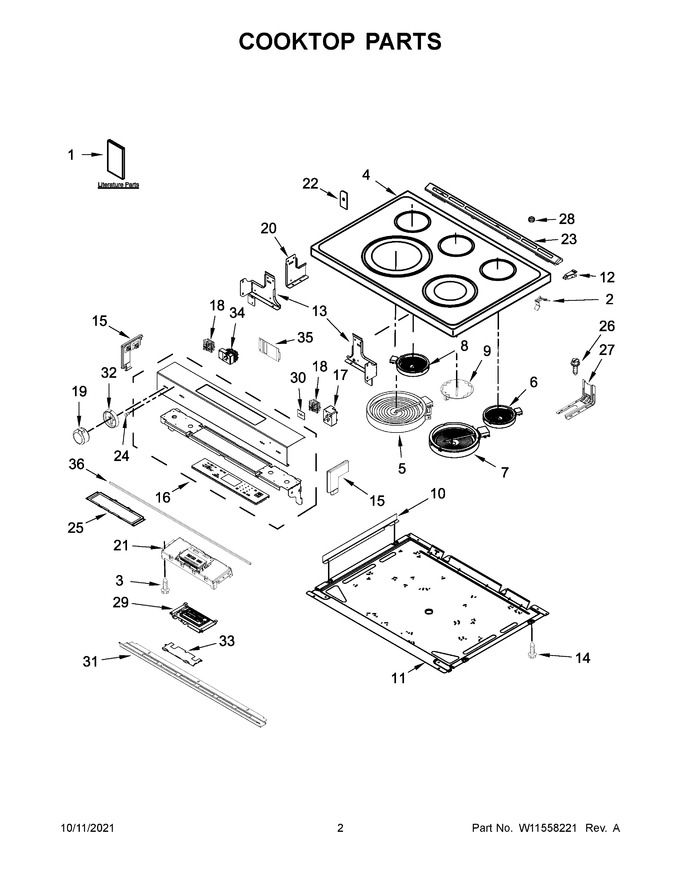

02 - Cooktop Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11509603 | Owners Manual |
|
- | |||||
| 2 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 3 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 4 | W10814036 | Cooktop (black) (Replaces: W10536295) |
|
$ 555.69 | |||||
| 5 | W10823720 | Element (3000w) (left Front) (Replaces: W10187839) |
|
Immediately | $ 336.57 | ||||
| 6 | W11171119 | Element (1200w) (right Rear) (Replaces: 8273994) |
|
Immediately | $ 182.23 | ||||
| 7 | WPW10251108 | Element (3200w) (right Front) (Replaces: W10251108) |
|
Immediately | $ 223.66 | ||||
| 8 | WPW10342780 | Element (1300w) (left Rear) (Replaces: W10342780) |
|
Immediately | $ 145.32 | ||||
| 9 | W11041453 | Element, Warm Zone (center Rear) (Replaces: W10799048) |
|
$ 132.95 | |||||
| 10 | W11175271 | Bracket, Radiant |
|
$ 77.91 | |||||
| 11 | W10536275 | Pan, Radiant |
|
$ 181.61 | |||||
| 12 | W10162253 | Brace, Corner (left) |
|
$ 74.13 | |||||
| 13 | W10289169 | Support, Cooktop (right) |
|
$ 30.05 | |||||
| 14 | W11244557 | Screw (Replaces: 3196173) |
|
$ 14.29 | |||||
| 15 | W10555937 | Endcap (stainless (left)) |
|
$ 67.95 | |||||
| 16 | W10915661 | Console (stainless) (Replaces: W10901128) |
|
Immediately | $ 664.77 | ||||
| 17 | W10911303 | Switch, Infinite (right Rear) (Replaces: W10578768) |
|
Immediately | $ 104.64 | ||||
| 18 | W10917724 | Switch, Infinite (right Front And Left Rear) (Replaces: W10437094) |
|
Immediately | $ 129.35 | ||||
| 19 | W10877180 | Knob (stainless (right Rear)) (Replaces: W10823543) |
|
Immediately | $ 72.20 | ||||
| 20 | W10598048 | Bracket, Console (center) |
|
$ 25.73 | |||||
| 21 | W11082269 | Control, Mrc2 (Replaces: W10759276) |
|
Immediately | $ 527.64 | ||||
| 22 | W10882900 | Gasket |
|
$ 23.34 | |||||
| 23 | W11240519 | Vent, Trim Top (black) (Replaces: W10636528) |
|
$ 157.19 | |||||
| 24 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 25 | W10555923 | Bracket, User Interface |
|
$ 107.43 | |||||
| 26 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 27 | W11502257 | Bracket, Anti-tip (Replaces: W11379947) |
|
Immediately | $ 23.03 | ||||
| 28 | W11104127 | Bumper (Replaces: W10664705) |
|
Immediately | $ 21.97 | ||||
| 29 | W11105615 | Assembly, Display (Replaces: W10759325) |
|
Immediately | $ 374.42 | ||||
| 30 | 7201P07760 | Gasket, Infinite Switch |
|
- | |||||
| 31 | W10555934 | Console, Lower Panel (stainless) |
|
Immediately | $ 186.07 | ||||
| 32 | W10813558 | Bezel (stainless) (Replaces: W10663809) |
|
Immediately | $ 76.88 | ||||
| 33 | W10558372 | Bracket, Control |
|
$ 25.10 | |||||
| 34 | W11129442 | Switch, Infinite (left Front) (Replaces: W10437097) |
|
Immediately | $ 100.57 | ||||
| 35 | W11355689 | Keypad Shield |
|
$ 22.64 | |||||
| 36 | W10802441 | Gasket, Console/ Cooktop (Replaces: W10612719) |
|
Immediately | $ 22.73 | ||||
| 12A | W10162252 | Brace, Corner (right) |
|
$ 78.59 | |||||
| 13A | W10289170 | Support, Cooktop (left) |
|
$ 30.05 | |||||
| 15A | W10555940 | Endcap (stainless (right)) |
|
$ 67.95 | |||||
| 19A | W11628652 | Knob (stainless (left Rear)) (Replaces: W10823541) |
|
$ 74.80 | |||||
| 19B | W11568640 | Knob (stainless (right Front)) (Replaces: W10823538) |
|
Immediately | $ 68.38 | ||||
| 19C | W10877188 | Knob (stainless (left Front)) (Replaces: W10823536) |
|
Immediately | $ 69.96 | ||||
| 1A | W11435572 | Quick Start Guide |
|
- | |||||
| 1B | W11326876 | Tech Sheet |
|
- | |||||
| NI | NP | Cabinet (not Serviced) |
|
- | |||||
| NI | W11226773 | Harness, Console (Replaces: W11172417) |
|
$ 211.70 | |||||
| NI | W11226772 | Harness, Display (Replaces: W11172426) |
|
Immediately | $ 236.93 | ||||
| NI | W11175842 | Suppressor (Replaces: W10653092) |
|
Immediately | $ 105.04 | ||||
| NI | W10664316 | Clip, Harness (cooktop) |
|
$ 20.97 | |||||
| NI | W11025616 | Harness, Keypad (Replaces: W10575120) |
|
Immediately | $ 53.35 | ||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 | |||||
| NI | W11454505 | Harness, Main |
|
- | |||||
| NI | W11226786 | Harness, Cooktop (Replaces: W11134658) |
|
Immediately | $ 241.75 |
