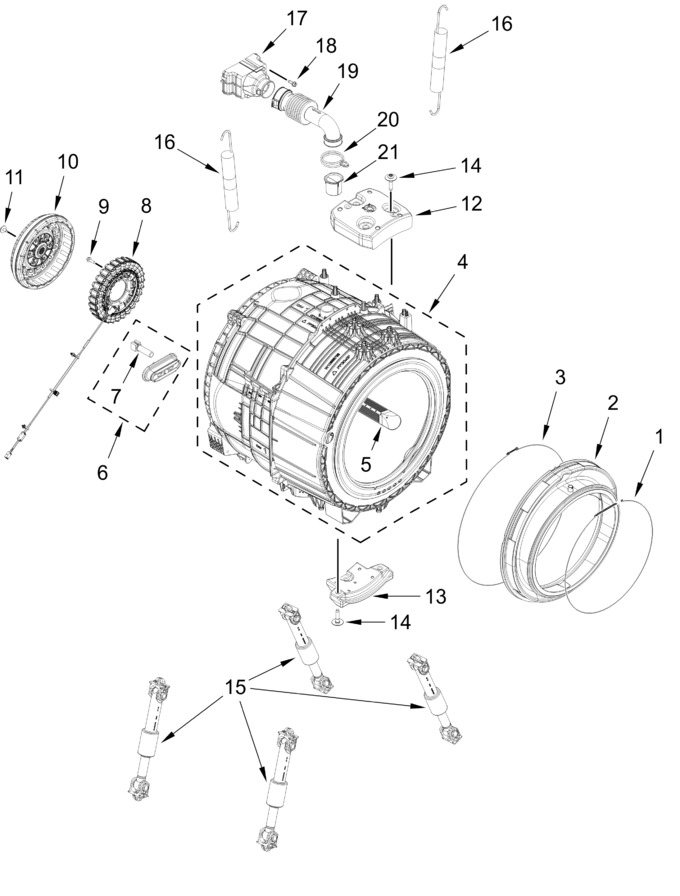

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11266654 | Retainer, Front Panel To Bellow (Replaces: W10818945) |
|
Immediately | $ 26.94 | ||||
| 2 | W11314648 | Bellow (Replaces: W10897390) |
|
Immediately | $ 270.99 | ||||
| 3 | W11314649 | Retainer, Bellow To Tub (Replaces: W11048199) |
|
Immediately | $ 22.35 | ||||
| 4 | W11460604 | Assembly, Tub And Drum (Replaces: W10921994) |
|
$ 832.09 | |||||
| 5 | W11460395 | Baffle, Drum (Replaces: W11198668) |
|
Immediately | $ 107.17 | ||||
| 6 | W11320546 | Assembly, Ntc (Replaces: W11036313) |
|
$ 84.58 | |||||
| 7 | W11314664 | Sensor, Ntc (Replaces: W10919909) |
|
Immediately | $ 184.95 | ||||
| 8 | W11354541 | Stator, Motor (Replaces: W11261207) |
|
Immediately | $ 415.19 | ||||
| 9 | W11314661 | Screw, Stator (Replaces: W11035597) |
|
$ 14.04 | |||||
| 10 | W11314361 | Rotor, Motor (Replaces: W10916241) |
|
Immediately | $ 178.95 | ||||
| 11 | W11557803 | Screw, Rotor (Replaces: W11354072) |
|
Immediately | $ 9.93 | ||||
| 12 | W11314650 | Counterweight, Top (Replaces: W11209370) |
|
Immediately | $ 155.45 | ||||
| 13 | W11607191 | Counterweight, Bottom (Replaces: W11279416) |
|
$ 121.42 | |||||
| 14 | W11314651 | Screw, Counterweight (Replaces: W11235083) |
|
Immediately | $ 14.13 | ||||
| 15 | W11316766 | Damper Assembly (Replaces: W11094464) |
|
Immediately | $ 95.95 | ||||
| 16 | W11771999 | Spring, Suspension (Replaces: W10896675) |
|
Immediately | $ 14.00 | ||||
| 17 | W11316248 | Enclosure, Vent (Replaces: W10919157) |
|
Immediately | $ 187.05 | ||||
| 18 | W11230114 | Screw (Replaces: 8540513) |
|
$ 13.28 | |||||
| 19 | W11316247 | Hose, Ventilation (Replaces: W11131396) |
|
Immediately | $ 33.92 | ||||
| 20 | WP371502 | Clamp, Hose (Replaces: 371507) |
|
$ 11.53 | |||||
| 21 | W11557921 | Deflector, Vent Port (Replaces: W11495086) |
|
Immediately | $ 15.98 |
