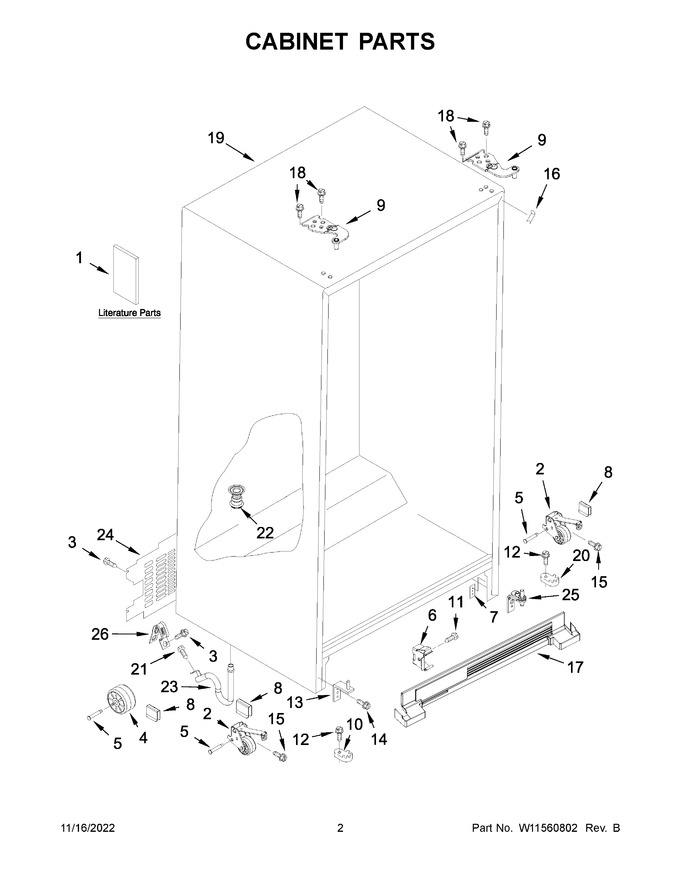

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11366704 | Use And Care Guide |
|
- | |||||
| 2 | WPW10304660 | Assembly, Roller (left Hand) (Replaces: W10304660) |
|
Immediately | $ 73.90 | ||||
| 3 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 8.05 | |||||
| 4 | WPW10475495 | Roller (Replaces: 2150304) |
|
Immediately | $ 32.06 | ||||
| 5 | W11594405 | Axle, Roller (Replaces: W11365774) |
|
Immediately | $ 19.12 | ||||
| 6 | WP2155013 | Clip, Grille (Replaces: 2155013) |
|
Immediately | $ 8.11 | ||||
| 7 | W11036715 | Plate, Screw (refrigerator) |
|
- | |||||
| 8 | W11594405 | Clip, Roller (Replaces: W11087168) |
|
Immediately | $ 19.12 | ||||
| 9 | W11505709 | Hinge, Top (left Hand) (Replaces: W11167022) |
|
$ 67.52 | |||||
| 10 | W11679635 | Closer, Door (freezer) (Replaces: W11095731) |
|
Immediately | $ 13.73 | ||||
| 11 | WP489128 | Screw (Replaces: 488500) |
|
$ 11.40 | |||||
| 12 | WP489483 | Screw (Replaces: W10142234) |
|
$ 11.41 | |||||
| 13 | W11687636 | Assembly, Bottom Hinge (freezer) (Replaces: W11093938) |
|
$ 72.89 | |||||
| 14 | WP489497 | Screw (Replaces: 3400113) |
|
Immediately | $ 29.09 | ||||
| 15 | W11544561 | Screw (Replaces: 2152958) |
|
$ 14.75 | |||||
| 16 | W11219639 | Filler, Wrapper (white) |
|
$ 11.88 | |||||
| 17 | W11282566 | Grille (white) (Replaces: W11226353) |
|
$ 128.46 | |||||
| 18 | W11579735 | Screw, Hinge (Replaces: W10290781) |
|
Immediately | $ 14.73 | ||||
| 19 | NP | Cabinet (not A Servicable Part) |
|
- | |||||
| 20 | W11398787 | Closer, Lower Cam Door (refrigerator) (Replaces: W10905504) |
|
$ 14.61 | |||||
| 21 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 8.38 | ||||
| 22 | W11566763 | Fitting, Drain (Replaces: W11424515) |
|
Immediately | $ 53.45 | ||||
| 23 | W11512417 | Extension, Drain Fitting (Replaces: W11404685) |
|
$ 36.53 | |||||
| 24 | W11613262 | Cover, Unit (Replaces: W11305036) |
|
$ 54.75 | |||||
| 25 | W11399415 | Assembly, Bottom Hinge (refrigerator - Also Includes Door Cam) (Replaces: W11097327) |
|
$ 73.28 | |||||
| 26 | W11234470 | Clamp, Power Cord (Replaces: W11242280) |
|
$ 22.12 | |||||
| 16A | W11219641 | Filler, Wrapper (black) |
|
$ 11.88 | |||||
| 17A | W11282567 | Grille (black) (Replaces: W11226354) |
|
$ 124.59 | |||||
| 1A | W11125067 | Tech Sheet |
|
- | |||||
| 1B | W11239600 | Energy Guide |
|
- | |||||
| 2A | WPW10304659 | Assembly, Roller (right Hand) (Replaces: W10304659) |
|
Immediately | $ 68.52 | ||||
| 7A | W10904380 | Plate, Screw (freezer) |
|
$ 25.96 | |||||
| 9A | W11505710 | Hinge, Top (right Hand) (Replaces: W11167023) |
|
$ 67.52 |
