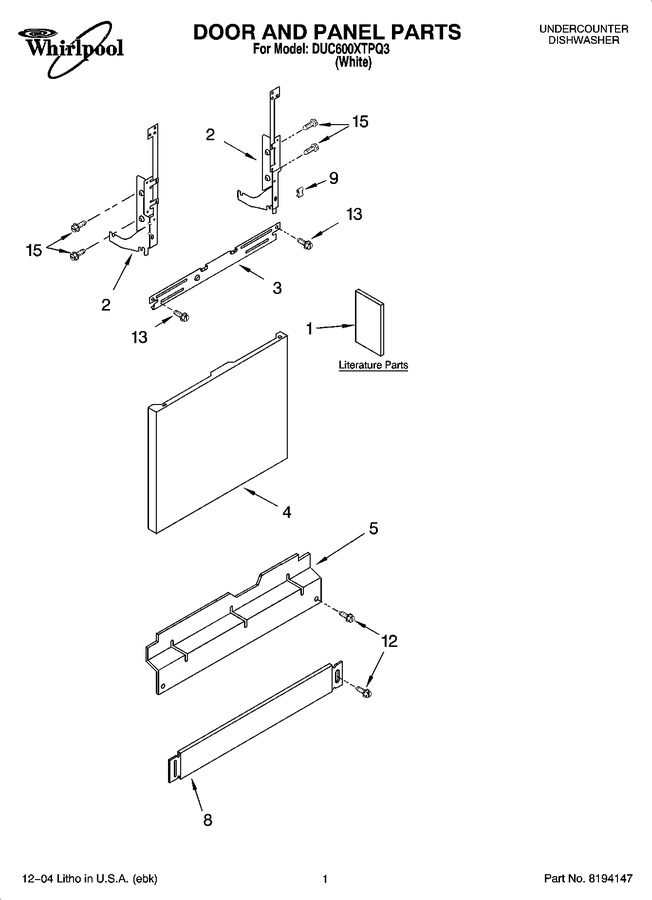

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8535437		Instructions, Installation		Appelez-nous	-
1	8535642		Energy Guide		Appelez-nous	-
1	8535541		Guide, Use & Care Tech Sheet		Appelez-nous	-
1	8535451		English/french		Appelez-nous	-
2	W11613572		Arm, Hinge (right)   (Replaces: 8534857)			Immediately	$ 78.37
2	W11806566		Arm, Hinge (left)   (Replaces: 8534858)			Immediately	$ 66.52
3	8268983		Stiffener, Door				$ 38.77
4	8269838		Panel Front		Appelez-nous	-
5	WPW10441007		Access Panel   (Replaces: 8543835)				$ 162.80
8	WPW10586591		Toe Panel   (Replaces: 8269000)				$ 309.39
9	8269740		Clip, Grounding				$ 6.21
12	WP3400836		Screw   (Replaces: 3400836)				$ 7.53
13	WP681414		Screw,   (Replaces: 343641)			Immediately	$ 7.85
15	3369181		Screw		Appelez-nous	-
