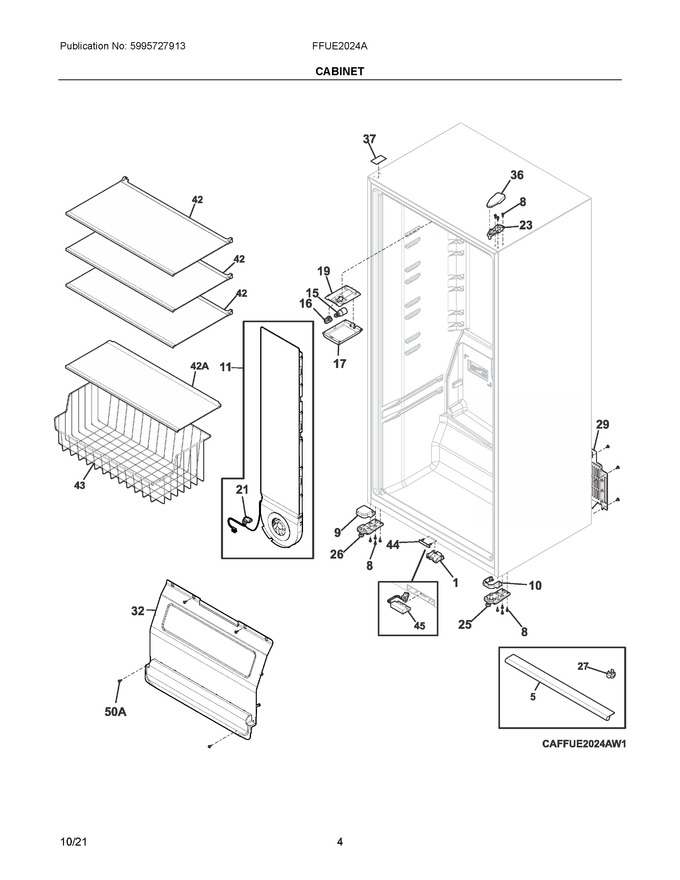

01 - Cover Sheet
02 - Door
03 - Cabinet
04 - System
05 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304523792 | Cover, Housing, Reed Switch |
|
Immediately | $ 8.84 | ||||
| 5 | 5304524149 | Channel, Wiring Harness |
|
$ 43.38 | |||||
| 8 | 5304522279 | Screw, Hex Wsh Hd Quad, M5 X 16 |
|
Immediately | $ 3.42 | ||||
| 9 | 5304519777 | Cover, Hinge, White, Lower, Non Hinged |
|
$ 5.63 | |||||
| 10 | 5304522244 | Cover, Hinge Side, White, Lower |
|
$ 4.97 | |||||
| 11 | 5303918891 | Air Tower, Assembly, Complete, W/motor-heater (Replaces: 5304531533) |
|
Immediately | $ 135.53 | ||||
| 15 | 5304522314 | Bulb, Light, E17/12 Led |
|
Immediately | $ 44.66 | ||||
| 16 | 5304522315 | Socket, Led Light |
|
Immediately | $ 11.80 | ||||
| 17 | 5304523778 | Cover, Lens |
|
Immediately | $ 15.72 | ||||
| 19 | 5304523777 | Mount, Socket |
|
$ 8.84 | |||||
| 21 | 5304523788 | Harness Assembly, Temp/defrost, W/thermostats |
|
Immediately | $ 42.84 | ||||
| 23 | 5304523689 | Hinge, Upper |
|
$ 12.85 | |||||
| 25 | 5304529045 | Hinge-bottom, Assembly, Rh, W/foot-closer |
|
$ 50.61 | |||||
| 26 | 5304523747 | Hinge-bottom, Assembly, Lh Non Hinged, W/foot |
|
$ 45.79 | |||||
| 27 | 5304524141 | Spacer, Roller, Lower Hinge |
|
$ 10.45 | |||||
| 29 | 5304525743 | Cover, Rear Access |
|
$ 156.42 | |||||
| 32 | 5304531488 | Cover Assembly, Evaporator Coil, Complete |
|
- | |||||
| 36 | 5304530010 | Cover, Upper Hinge, White |
|
Immediately | $ 7.72 | ||||
| 37 | 5304523313 | Label, Blank, White, Hole Cover |
|
Immediately | $ 3.94 | ||||
| 42 | 5304536377 | Shelf Assembly, Glass, Large, W/trim (Replaces: 5304524074) |
|
Immediately | $ 57.17 | ||||
| 43 | 5304537472 | Basket, Wire, Lower (Replaces: 5304523751) |
|
Immediately | $ 40.52 | ||||
| 44 | 5304524130 | Cover, Reed Switch, Front |
|
$ 10.63 | |||||
| 45 | 5304527992 | Reed Switch Harness, Assembly |
|
Immediately | $ 90.77 | ||||
| 42A | 5304536378 | Shelf Assembly, Glass, Small, W/trim (Replaces: 5304524026) |
|
$ 43.22 | |||||
| 50A | 5304523738 | Screw, Hex Wash Hd, M4.2 X 16 |
|
$ 7.23 | |||||
| NI | 5304524123 | Harness, Jumper, Cabinet, To Door |
|
$ 26.75 | |||||
| NI | 242039703 | Screw, Type Ab, #10-16 |
|
- | |||||
| NIA | 241500305 | Screw, Hex Hd, #8-18 X 5/8 |
|
$ 3.37 | |||||
| NIA | 5303918733 | Tape, Aluminum, 36mm (Replaces: 5304522179) |
|
Immediately | $ 4.73 | ||||
| NIA | 5304537226 | Harness, Jumper, Foil Heater (Replaces: 5304531524) |
|
Immediately | $ 50.17 | ||||
| NIA | 241941202 | Screw, Hex Washer Head, 8-18 X 5/16 (Replaces: 240433204) |
|
$ 16.85 |
