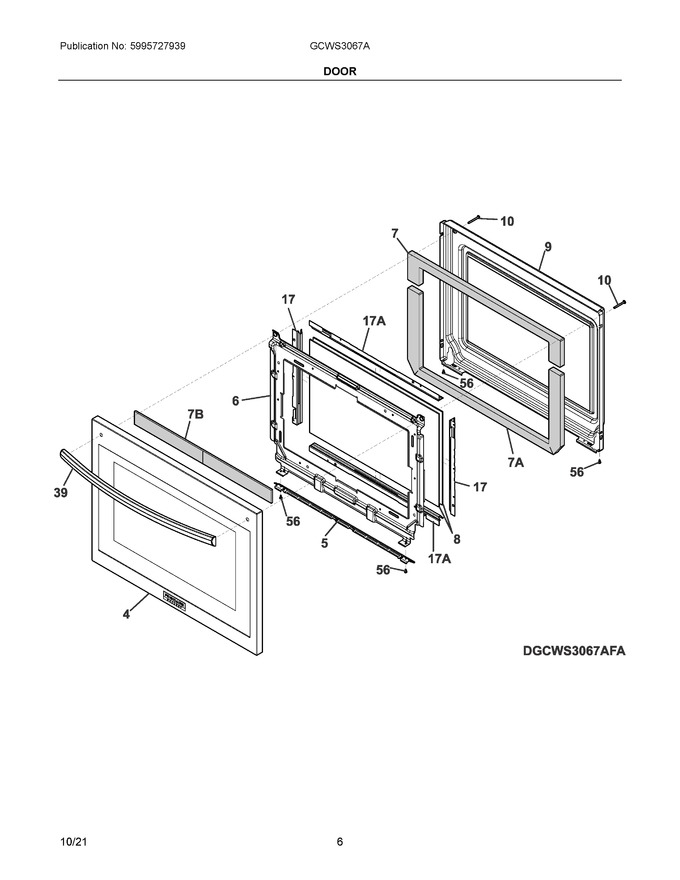

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 5304526650 | Door Assembly, Outer, Steel/glass, Black Stainless, W/badge |
|
$ 288.48 | |||||
| 5 | 5304530443 | Bracket, Door Protection, Lower |
|
$ 36.24 | |||||
| 6 | 5304526282 | Shield, Wool, Door |
|
$ 77.52 | |||||
| 7 | 140293846022 | Insulation (Replaces: 5304526656) |
|
Immediately | $ 7.94 | ||||
| 8 | 5304526387 | Glass, Door, Inner, Shr, Pf |
|
Immediately | $ 184.54 | ||||
| 9 | 5304526278 | Liner, Oven Door, Midnight Black |
|
- | |||||
| 10 | 316433305 | Screw |
|
Immediately | $ 2.53 | ||||
| 17 | 5304526284 | Bracket, Glass Pack, Vertical |
|
Immediately | $ 13.48 | ||||
| 39 | 5304534842 | Handle, Door, Black Stainless, Gallery (Replaces: 5304526488) |
|
Immediately | $ 97.73 | ||||
| 56 | 5304526234 | Screw |
|
$ 3.37 | |||||
| 17A | 5304526285 | Bracket |
|
$ 10.11 | |||||
| 7A | 5304526655 | Insulation |
|
Immediately | $ 10.11 | ||||
| 7B | 5304526530 | Insulation |
|
$ 16.85 | |||||
| NI | 5304526232 | Screw |
|
- |
