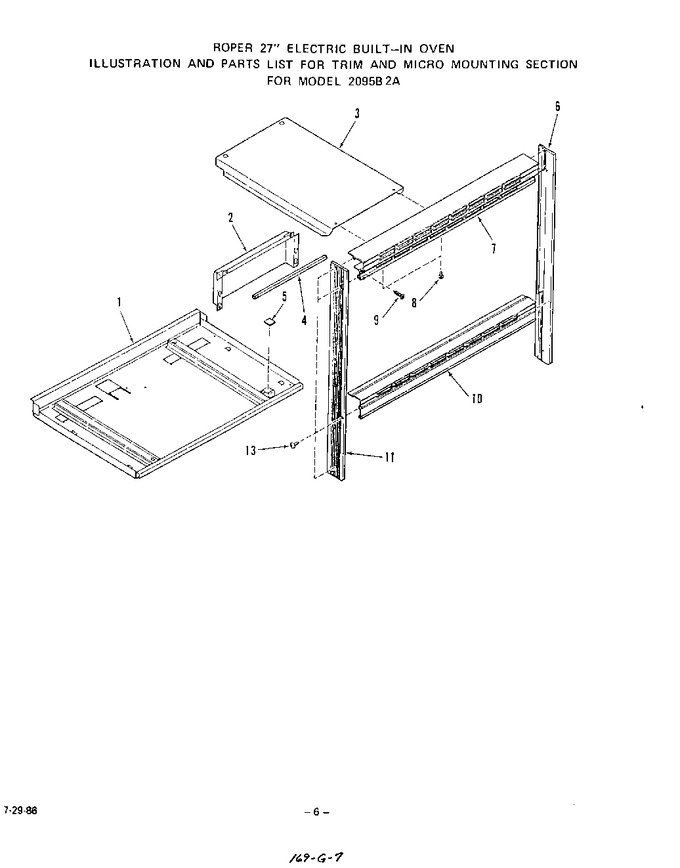

06 - Trim And Micro Mounting
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 322774 | Module Support Bottom |
|
- | |||||
| 2 | 322764 | Vent Box |
|
- | |||||
| 3 | 322766 | Extension-vent |
|
- | |||||
| 4 | 322782 | Foam Strip |
|
- | |||||
| 5 | 322097 | Spacer (2 Req) |
|
- | |||||
| 6 | 326586 | Side Trim-right |
|
- | |||||
| 7 | 327526 | Top Trim |
|
- | |||||
| 8 | WP112432 | Screw 10-32x7/16`` (Replaces: 311484) |
|
$ 8.63 | |||||
| 9 | 327527 | Screw 10abx2 1/2`` |
|
- | |||||
| 10 | 329436 | Trim-lower |
|
- | |||||
| 11 | 326585 | Side Trim-left |
|
- | |||||
| 13 | 333040 | Lock Switch |
|
- | |||||
| 13 | 299766 | Screw 6-32 X 1/2`` |
|
- | |||||
| 13 | 332553 | Main |
|
- |
