01 - Chassis Assembly

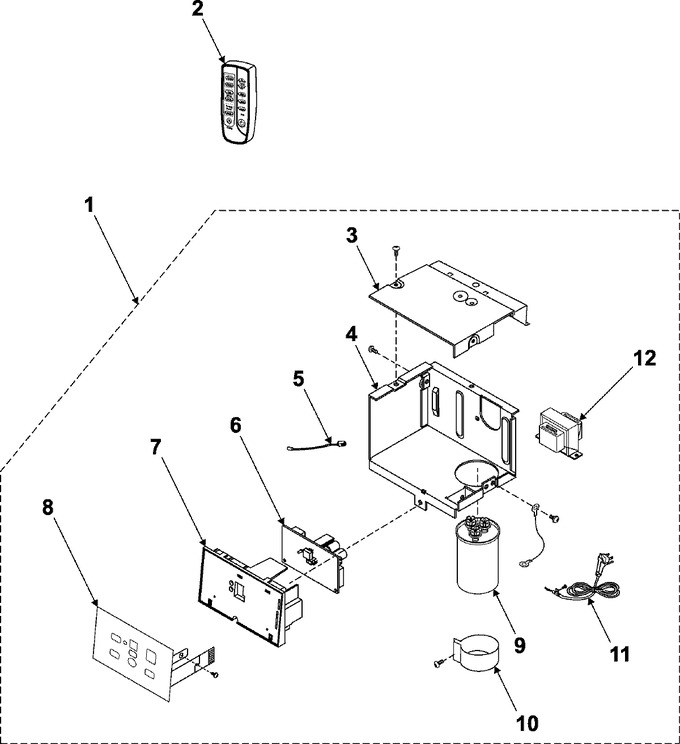

02 - Control Assembly
03 - Outer Case Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DB93-01357D | Assy Control |
|
- | |||||
| 2 | DB93-01433F | Assy Remocon |
|
- | |||||
| 3 | DB61-00933A | Case Control-up |
|
- | |||||
| 4 | DB61-00934A | Case Control-low |
|
- | |||||
| 5 | DB32-10051D | Thermistor |
|
$ 12.60 | |||||
| 6 | DB93-00874P | Assy Pcb Main |
|
- | |||||
| 7 | DB64-00571A | Panel Control |
|
- | |||||
| 8 | DB34-00019F | Switch Membrane |
|
- | |||||
| 9 | 2501-001290 | Capacitor (oil) |
|
- | |||||
| 10 | DB65-00031A | Clip-capacitor |
|
- | |||||
| 11 | DB39-00343G | Power Cord-ass`y |
|
- | |||||
| 12 | DB26-00006G | Trans-power (ac115v,50/60hz) |
|
$ 96.33 |
