01 - Cover

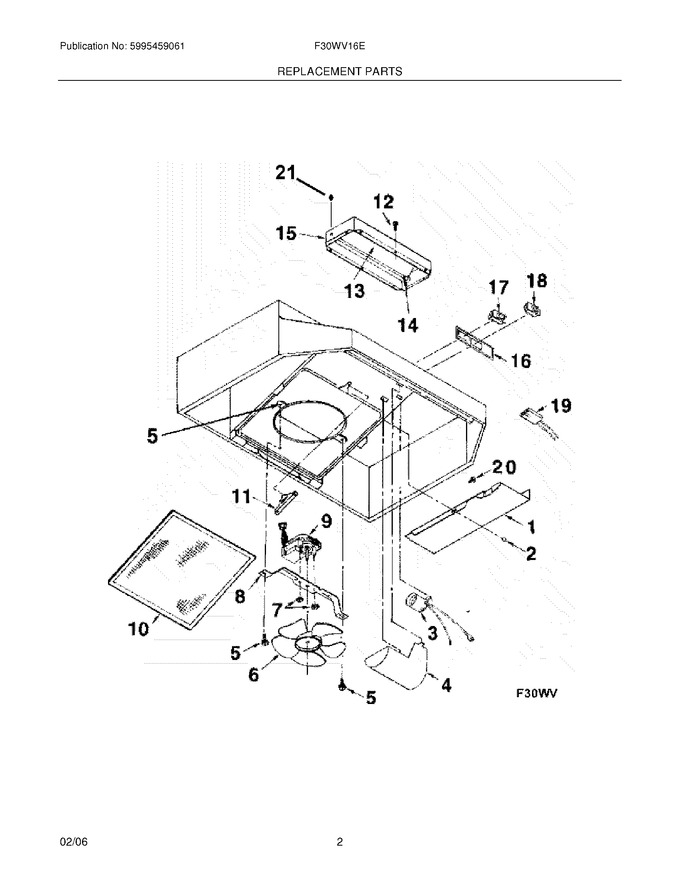

03 - Replacement Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304452355 | Cover,outlet Box |
|
- | |||||
| 2 | 5303281950 | Screw,sheet Metal ,8-18 X 0.375 |
|
- | |||||
| 4 | 3051767 | Lens,lamp ,glass |
|
$ 113.72 | |||||
| 5 | 5304452357 | Fastener Kit,2-screw & 2-nut |
|
- | |||||
| 7 | 5304452359 | Nut,locking ,6-32 ,(2) |
|
- | |||||
| 8 | 3051766 | Bracket,motor Mount |
|
- | |||||
| 11 | 5304413743 | Clip,filter Retainer |
|
- | |||||
| 12 | 5303282121 | Screw,8-18b X 0.250 ,(2) |
|
- | |||||
| 13 | 5303281952 | Flap,damper Door |
|
- | |||||
| 14 | 5303281953 | Bushing-damper |
|
- | |||||
| 16 | 5304452371 | Nameplate,white |
|
- | |||||
| 20 | 5303282015 | Screw,ground ,10-32 X 0.500 |
|
- | |||||
| 21 | 5303282013 | Bumper,damper |
|
- | |||||
| F10 | 5304452031 | Filter,aluminum |
|
- | |||||
| F15 | 5304452361 | Damper Assy,incl. 13,14,21 |
|
- | |||||
| F17 | 5304452393 | Switch,motor ,white ,2 Speed |
|
- | |||||
| F18 | 5304452396 | Switch,lamp ,white |
|
- | |||||
| F19 | 5304452366 | Receptacle,motor ,with Wires |
|
- | |||||
| F3 | 5304452356 | Receptacle,lamp Holder ,w/wires |
|
- | |||||
| F6 | 5304452358 | Fan Blade |
|
- | |||||
| F9 | 5304452360 | Motor Assy,fan ,includes 6,7,8 |
|
$ 245.39 |
