Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 DB93-02607A Assy Control-box;co,-,5k,aw050 Appelez-nous -
2 DB61-00933A Case Control-up Appelez-nous -
3 DB61-00934A Case Control-low Appelez-nous -
4 DB39-00343G Power Cord-ass`y Appelez-nous -
5 DB47-20074D Thermostat Special Order $ 101.42

6 2501-001290 Capacitor (oil) Appelez-nous -
7 DB64-00838A Knob-thermo Assy Appelez-nous -
8 DB64-00758A Panel Control Appelez-nous -
9 3406-001045 Switch, Rotary (240v) Special Order $ 47.74

10 DB65-00031B Clamper-core Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

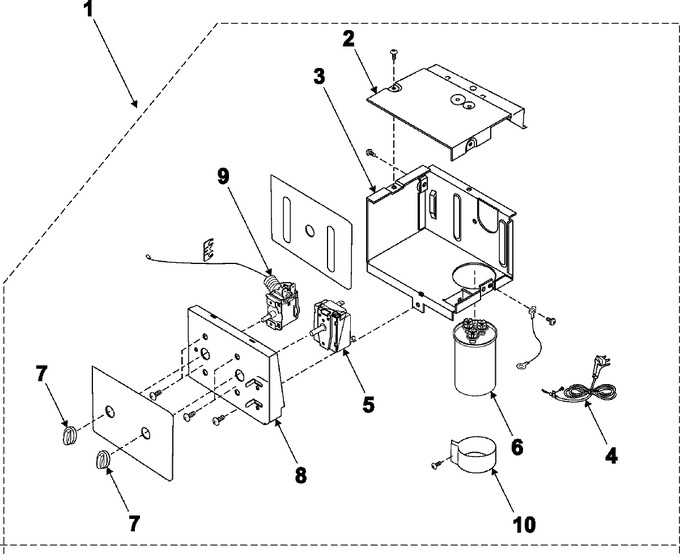

Diagram for AW0507M
