01 - Cover Sheet

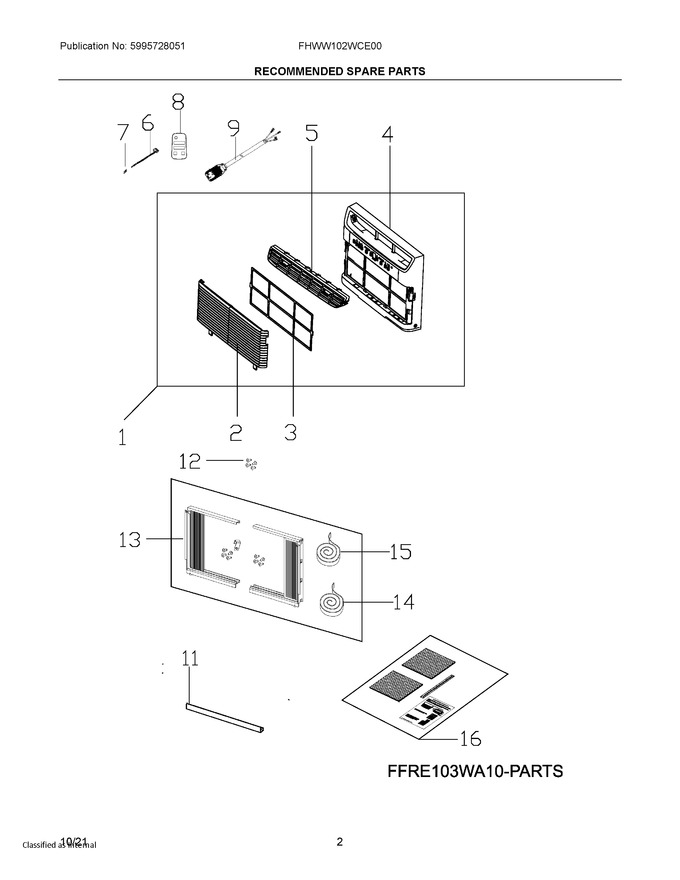

02 - Recommended Spare Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304528027 | Panel, Assymbly, Front |
|
- | |||||
| 2 | 5304520872 | Grill |
|
- | |||||
| 3 | 5304520873 | Filter-air |
|
$ 21.11 | |||||
| 4 | 5304520874 | Frame |
|
- | |||||
| 5 | 5304520875 | Louvres |
|
- | |||||
| 6 | 5304523814 | Control Module, Wifi |
|
- | |||||
| 7 | 5304520876 | Door, Vent Control |
|
- | |||||
| 8 | 5304520877 | Sleeve, Door - Vent |
|
- | |||||
| 9 | 5304534018 | Remote, Control (Replaces: 5304523815) |
|
- | |||||
| 10 | 5304509294 | Power Cord, Electric, 115 V, Lcdi |
|
- | |||||
| 11 | 5304520878 | Sleeve, Side Curtan |
|
- | |||||
| 12 | 5304504780 | Rail, Shutter Track, Top Angle |
|
- | |||||
| 13 | 5304520879 | Screw, Top-rail |
|
- | |||||
| 14 | 5304520880 | Insulation, Kit |
|
- | |||||
| 15 | 5304520810 | Seal |
|
- | |||||
| 16 | 5304520837 | Seal |
|
- |
