SELECT A DIAGRAM

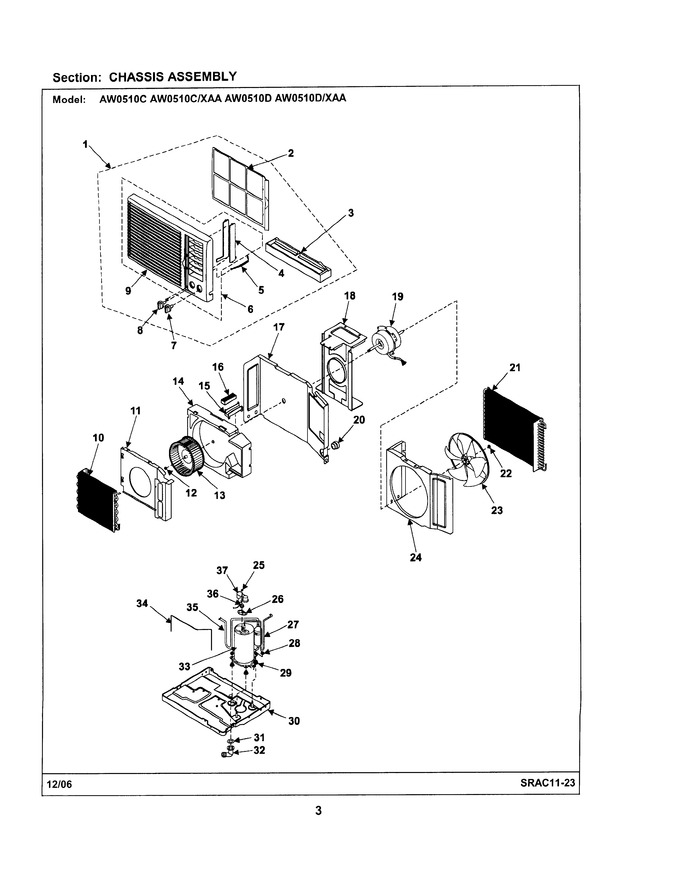

01 - Chassis Assembly


02 - Control Assembly


03 - Outer Case Assembly


04 - Supplemental Information


05 - Wiring Information (aw0510d)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DB92-00032A		Assy-panel-front		Appelez-nous	-
2	DB61-00191A		Guide-filter		Appelez-nous	-
2	DB63-00026A		Guard-air Filter		Appelez-nous	-
3	DB63-00027A		Tray-drain		Appelez-nous	-
4	DB66-00023A		Blade-v		Appelez-nous	-
5	Y00000000		See Note Lever Damper Currently Unavailable		Appelez-nous	-
6	Y00000000		See Note Assy Grille Currently Unavailable		Appelez-nous	-
7	DB64-00124B		Knob-selector-assy		Appelez-nous	-
8	DB64-00124A		Knob-thermo-assy				$ 6.38
9	DB64-00043A		Grille-front		Appelez-nous	-
10	DB96-00548A		Assy Evap		Appelez-nous	-
11	DB70-00020A		Plate-evap Rh		Appelez-nous	-
12	DB60-30004A		Nut-flange		Appelez-nous	-
13	DB67-00013A		Blower		Appelez-nous	-
14	DB61-00083A		Case-evap		Appelez-nous	-
15	DB63-00031A		Cover-pipe		Appelez-nous	-
16	DB73-00031A		Rubber-pipe		Appelez-nous	-
17	DB94-00201A		Assy Partition		Appelez-nous	-
17	DB67-00012A		Partition		Appelez-nous	-
18	DB61-00084A		Mount-motor		Appelez-nous	-
19	DB31-00035A		Motor-fan		Appelez-nous	-
20	DB63-00089A		Cover-partition		Appelez-nous	-
21	Y00000000		See Note Assy Condensor Currently Unavailable		Appelez-nous	-
21	DB62-00205A		Tube-cond Out		Appelez-nous	-
22	DB60-00437A		Nut-flange   (Replaces: DB60-30020A)			Immediately	$ 5.57
23	DB67-00014A		Fan-propeller				$ 15.44
24	DB61-00085A		Case-cond		Appelez-nous	-
25	DB60-30001A		Nut-terminal Cover		Appelez-nous	-
26	DB63-20003A		Gasket		Appelez-nous	-
27	DB62-00445C		Tube Discharge		Appelez-nous	-
28	DB60-30028A		Nut-washer		Appelez-nous	-
29	DB73-00016A		Grommet-isolator		Appelez-nous	-
30	DB90-00430A		Assy Base-out;ok-p/j,-		Appelez-nous	-
30	DB90-00123G		Assy Base		Appelez-nous	-
31	Y00000000		See Note Rubber Drain Currently Unavailable		Appelez-nous	-
32	Y00000000		See Note Drain-plug Currently Unavailable		Appelez-nous	-
33	44A052HS1KA		Rotary Compressor:115v,60hz,r2		Appelez-nous	-
34	DB62-00763A		Tube Capillary;5k Sbs,c1220t-0		Appelez-nous	-
34	Y00000000		See Note Assy Tube Capillary Currently Unavailable		Appelez-nous	-
35	DB62-00296A		Tube Suction		Appelez-nous	-
36	DB47-20002Q		Olp		Appelez-nous	-
37	DB63-10026A		Cover-terminal		Appelez-nous	-
