01 - Cover Sheet
02 - Cabinet Parts
03 - Upper Drawer Parts
04 - Lower Drawer Parts

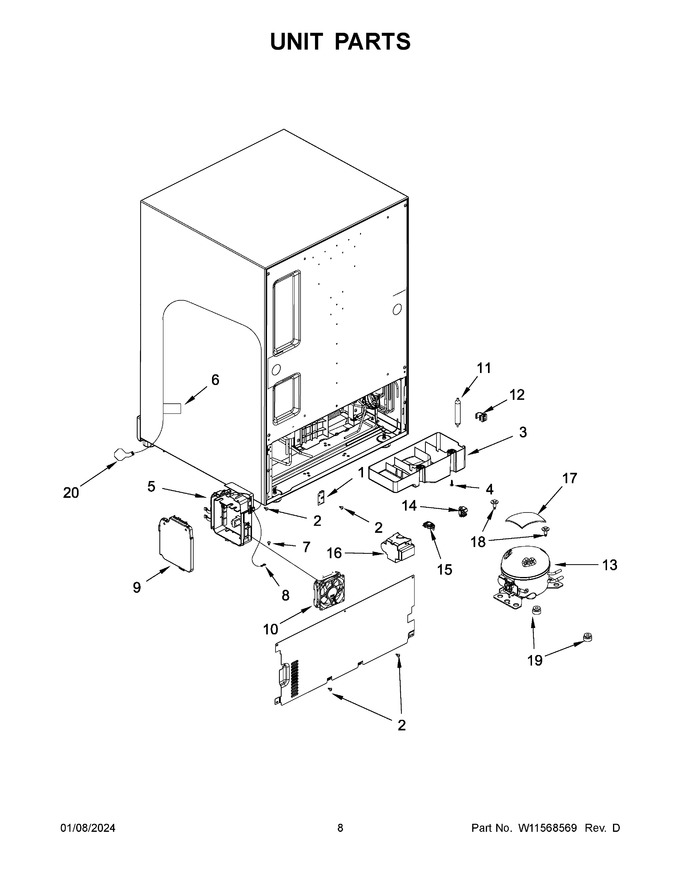

05 - Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11579515 | Clamp, Cord (Replaces: W11576947) |
|
- | |||||
| 2 | W11371097 | Screw |
|
- | |||||
| 3 | W11360241 | Water Pan, Evaporator |
|
- | |||||
| 4 | W11375763 | Screw |
|
- | |||||
| 5 | W11827050 | Main Pcb (Replaces: W11568810) |
|
Immediately | $ 576.92 | ||||
| 6 | W11618463 | Tag, Power Cord (Replaces: W11577175) |
|
Immediately | $ 132.47 | ||||
| 7 | 4344826 | Screw |
|
$ 16.70 | |||||
| 8 | W11266077 | Washer (Replaces: W11265570) |
|
- | |||||
| 9 | W11313206 | Cover, Pcb |
|
$ 81.85 | |||||
| 10 | W11360536 | Assembly, Fan Motor |
|
$ 215.88 | |||||
| 11 | W11109499 | Drier (service Drier Without Dye) (Replaces: W10805035) |
|
Immediately | $ 39.12 | ||||
| 12 | W11266075 | Clamp (Replaces: W11265569) |
|
- | |||||
| 13 | W11754545 | Compressor (Replaces: W11531824) |
|
$ 775.36 | |||||
| 14 | W11596023 | Ptc Thermistor (Replaces: W11422771) |
|
$ 74.61 | |||||
| 15 | W11579512 | Protector, Motor (Replaces: W11568812) |
|
$ 45.85 | |||||
| 16 | W11579581 | Cover (Replaces: W11568820) |
|
- | |||||
| 17 | W11596025 | Compressor, Rubber (Replaces: W11360595) |
|
$ 38.27 | |||||
| 18 | W10772873 | Bolt, Compressor (Replaces: 4344780) |
|
- | |||||
| 19 | WP4344779 | Grommet, Compressor (Replaces: 4344779) |
|
$ 8.47 | |||||
| 20 | W11618463 | Cord, Power (Replaces: W11498145) |
|
Immediately | $ 132.47 | ||||
| NI | ARIDA6DC5E9787D4073CD772E8F8C67B2DD | Refrigerant Charge 46 Grams (r600a) |
|
- |
