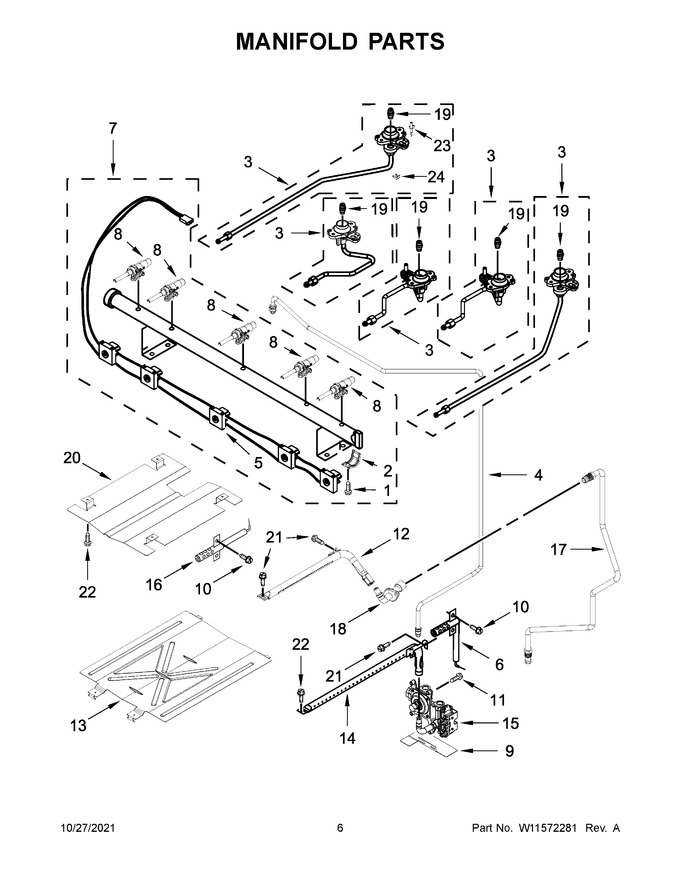

04 - Manifold Parts


05 - Chassis Parts


06 - Door Parts


07 - Drawer Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10295997		Screw, Valve				$ 7.32
2	W10949105		Bracket, Saddle Valve   (Replaces: W10295996)				$ 22.75
3	W11562501		Orifice Holder Assembly (15k) (left Front)   (Replaces: W11459257)				$ 104.50
4	W11680399		Tubing (manifold To Regulator)   (Replaces: W10215439)				$ 159.35
5	W11233074		Harness, Igniter (includes Switches)   (Replaces: W10811691)				$ 190.30
6	W11524031		Electrode, Bake   (Replaces: W11450459)			Immediately	$ 56.90
7	W11347745		Manifold Assembly				$ 305.35
8	W11628784		Valve, Gas (left Front & Right Front)   (Replaces: W11352012)				$ 80.44
9	W10224921		Bracket, Aegis		Appelez-nous	-
10	W11684507		Screw   (Replaces: 3196385)				$ 14.27
11	WP3400016		Screw   (Replaces: 3400016)				$ 8.39
12	WP8054078		Burner, Broiler   (Replaces: 8054078)				$ 239.36
13	WPW10184491		Spreader, Flame (oven)   (Replaces: W10184491)				$ 253.52
14	WP9758078		Burner, Bake   (Replaces: 9758078)				$ 226.07
15	W11449506		Regulator   (Replaces: W11370883)				$ 201.69
16	WPW10333842		Electrode, Broil   (Replaces: W10333842)			Immediately	$ 85.81
17	W10420040		Tube, Broiler Supply				$ 194.54
18	W11435700		Fitting, Broiler				$ 89.09
19	W11428753		Orifice (15k) (right Front)			Immediately	$ 83.27
20	W10137062		Spreader, Flame (broiler)		Appelez-nous	-
21	3196265		Screw		Appelez-nous	-
22	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 14.72
23	W11453940		Electrode (left Front, Left Rear)   (Replaces: W11428831)				$ 64.46
24	W11684564		Spring, Electrode   (Replaces: W10827923)			Immediately	$ 12.65
19A	W11485873		Orifice (9.5k) (left Rear)				$ 69.03
19B	W11712434		Orifice (5k) (right Rear)   (Replaces: W11485871)				$ 16.73
19C	W11485874		Orifice (8k) (center)				$ 69.03
19D	W11700316		Orifice (15k) (left Front & Right Front)   (Replaces: W11485872)				$ 16.73
23A	W11453920		Electrode (right Front, Right Rear, Center)   (Replaces: W11428858)				$ 64.35
3A	W11557815		Orifice Holder Assembly (9.5k) (left Rear)   (Replaces: W11459258)		Appelez-nous	-
3B	W11557816		Orifice Holder Assembly (15k) (right Front)   (Replaces: W11459260)				$ 107.93
3C	W11557817		Orifice Holder Assembly (5k) (right Rear)   (Replaces: W11459259)		Appelez-nous	-
3D	W11557818		Orifice Holder Assembly (8k) (center)   (Replaces: W11459261)				$ 108.20
8A	W11699929		Valve, Gas (left Rear, Center)   (Replaces: W11352013)				$ 70.47
8B	W11352015		Valve, Gas (right Rear)				$ 113.04
NI	NP		Following Parts Not Illustrated		Appelez-nous	-
NI	W10758273		Orifice, Lp Broil   (Replaces: W10465080)				$ 8.53
NI	W11126051		Lp Bake And Broil Kit   (Replaces: W10566537)				$ 129.04
NI	WPW10400495		Orifice, Lp Bake   (Replaces: W10400495)				$ 94.32
NI	W11560165		Lp 5 Orifice Conversion Kit   (Replaces: W11489399)				$ 35.03
