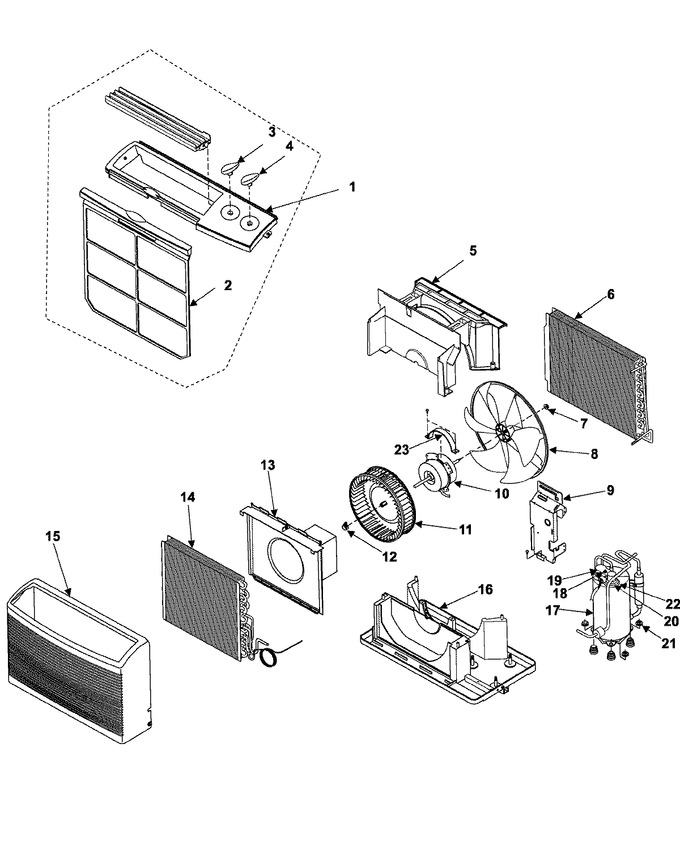

01 - Chassis Assembly
02 - Control Assembly
03 - Outer Case Assembly
04 - Supplemental Information
05 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DB92-50028D | Assy-inlay-frame |
|
- | |||||
| 2 | DB74-10080A | Filter |
|
- | |||||
| 3 | DB67-60012A | Spring-knob |
|
- | |||||
| 3 | DB64-50149A | Knob-thermo Ass`y |
|
- | |||||
| 4 | DB67-60012A | Spring-knob |
|
- | |||||
| 4 | DB64-50150A | Knob-select Ass`y |
|
- | |||||
| 5 | DB90-50136A | Assy-frame Up |
|
- | |||||
| 6 | Y00000000 | See Note Assy Condensor Currently Unavailable |
|
- | |||||
| 6 | DB70-10639A | Plate-cond Rh |
|
- | |||||
| 6 | DB70-10638A | Plate-cond Lf |
|
- | |||||
| 7 | DB60-30004A | Nut-flange |
|
- | |||||
| 8 | DB67-50070A | Fan |
|
- | |||||
| 9 | DB67-30076A | Partition |
|
- | |||||
| 10 | DB31-10139F | Motor Fan |
|
- | |||||
| 11 | DB67-50071A | Blower |
|
- | |||||
| 12 | Y00000000 | See Note Clip-blower Currently Unavailable |
|
- | |||||
| 13 | Y00000000 | See Note Assy Case-blower Currently Unavailable |
|
- | |||||
| 14 | DB70-10637A | Plate-evap Rh |
|
- | |||||
| 14 | Y00000000 | See Note Assy-evaporator Includes Tube Capillary, Both Are Currently Unavailable |
|
- | |||||
| 15 | DB64-10142A | Grille-front |
|
- | |||||
| 16 | DB90-20188A | Assy-base |
|
- | |||||
| 17 | 44A056HW1DA | Rotary Compressor:115v,60hz,1p |
|
- | |||||
| 18 | DB60-30018A | Nut-flange |
|
- | |||||
| 19 | DB63-10026A | Cover-terminal |
|
- | |||||
| 20 | DB47-20002F | Olp |
|
- | |||||
| 21 | DB60-30028A | Nut-washer |
|
- | |||||
| 22 | DB63-20002A | Gasket |
|
- | |||||
| 23 | Y00000000 | See Note Clip-motor Currently Unavailable |
|
- |
