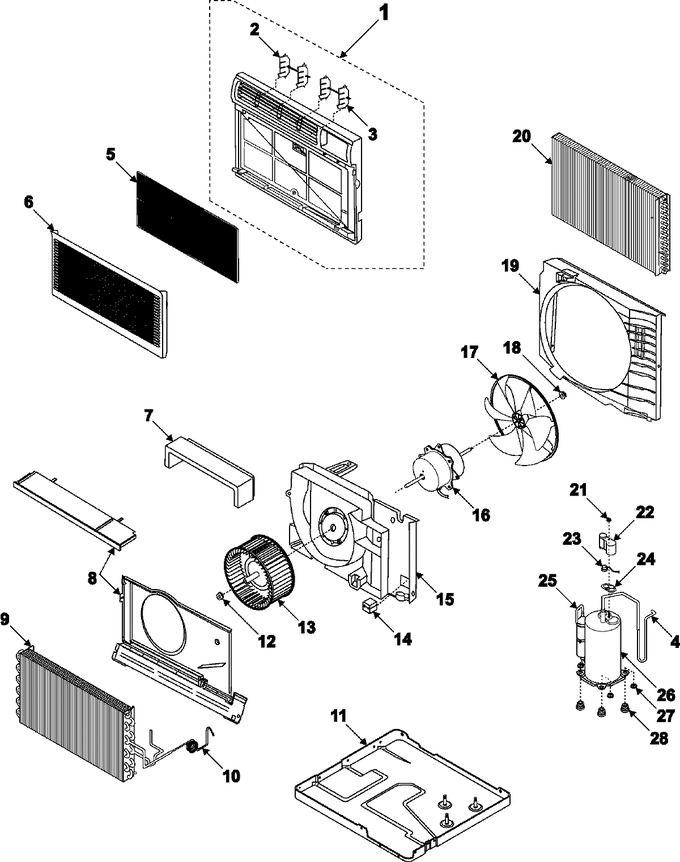

01 - Chassis Assembly
02 - Control Assembly
03 - Outer Case Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | DB66-00367A | Blade-v;-,hips,t2.0,-,-,aw05jc |
|
- | |||||
| 3 | DB66-00368A | Link Blade |
|
- | |||||
| 4 | DB62-01349B | Tube Discharge;y-p/j,c1220t-0, |
|
- | |||||
| 5 | DB61-00191A | Guide-filter |
|
- | |||||
| 6 | DB64-00681A | Grille-air Inlet;aw05jcyaa,hip |
|
- | |||||
| 7 | DB90-00944A | Assy-evap Case Up |
|
- | |||||
| 8 | DB90-00898A | Assy-plate Evap Casing |
|
- | |||||
| 9 | DB96-01972A | Assy Evap |
|
- | |||||
| 10 | DB62-01350A | Tube Capillary |
|
- | |||||
| 11 | DB90-00897A | Assy Base |
|
- | |||||
| 12 | DB60-30004A | Nut-flange |
|
- | |||||
| 13 | DB67-00099A | Blower |
|
- | |||||
| 14 | DB72-50178A | Insulation-tube |
|
- | |||||
| 15 | DB70-00219A | Plate-partition |
|
- | |||||
| 16 | DB31-00035K | Motor Fan |
|
- | |||||
| 17 | DB67-00014A | Fan-propeller |
|
$ 15.44 | |||||
| 18 | DB60-00437A | Nut-flange (Replaces: DB60-30020A) |
|
Immediately | $ 5.57 | ||||
| 19 | DB61-00932A | Case Cond |
|
- | |||||
| 20 | DB96-02044B | Assy Cond;aw06jcyab,add Cond I |
|
- | |||||
| 21 | DB60-30001A | Nut-terminal Cover |
|
- | |||||
| 22 | DB63-10026A | Cover-terminal |
|
- | |||||
| 23 | Y00000000 | See Note Relay Protector O/l-39 Fr Currently Unavailable |
|
- | |||||
| 24 | DB63-20003A | Gasket |
|
- | |||||
| 25 | DB62-01314B | Tube Suction |
|
- | |||||
| 26 | W10124433 | Rotary Compressor. 115v 60hz 1 |
|
- | |||||
| 27 | DB60-30028A | Nut-washer |
|
- | |||||
| 28 | DB73-00016A | Grommet-isolator |
|
- |
