SELECT A DIAGRAM

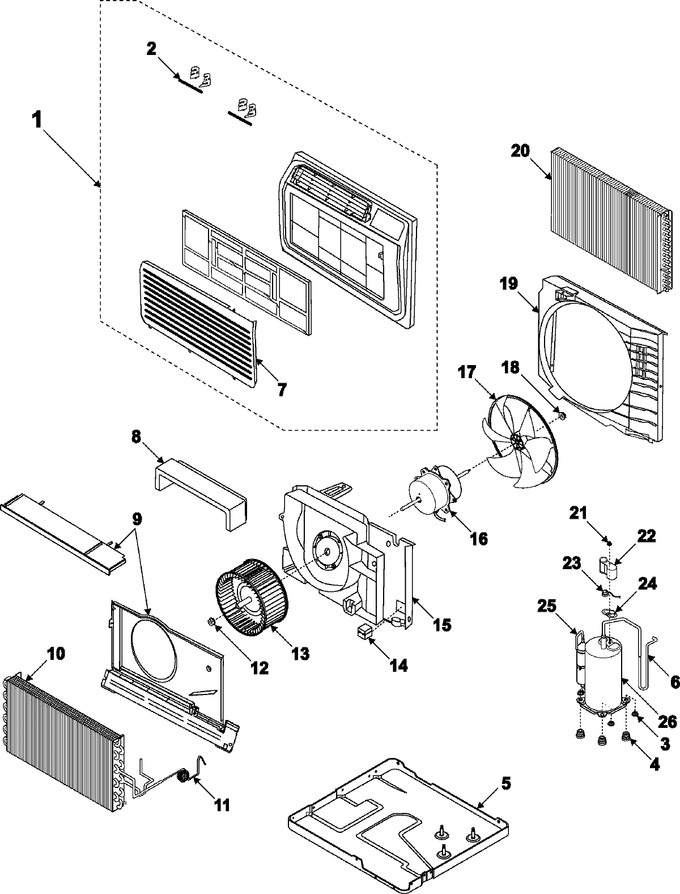

01 - Chassis Assembly


02 - Control Assembly


03 - Outer Case Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DB92-00516E		Assy Panel Front		Appelez-nous	-
2	DB66-00368A		Link Blade		Appelez-nous	-
3	DB60-30028A		Nut-washer		Appelez-nous	-
4	DB63-00764A		Grommet Isolator		Appelez-nous	-
5	DB90-00897A		Assy Base		Appelez-nous	-
6	DB62-01349B		Tube Discharge;y-p/j,c1220t-0,		Appelez-nous	-
7	DB64-00903B		Grille-air Inlet		Appelez-nous	-
8	DB90-00944A		Assy-evap Case Up		Appelez-nous	-
9	DB90-00898A		Assy-plate Evap Casing		Appelez-nous	-
10	DB96-01972A		Assy Evap		Appelez-nous	-
11	DB62-02282A		Tube Capillary;-,c1220t-0,-,od		Appelez-nous	-
12	DB60-30004A		Nut-flange		Appelez-nous	-
13	DB67-00099A		Blower		Appelez-nous	-
14	DB72-50178A		Insulation-tube		Appelez-nous	-
15	DB94-00438A		Assy Partition;y-p/j,sea		Appelez-nous	-
16	DB31-00035K		Motor Fan		Appelez-nous	-
17	DB67-00014A		Fan-propeller				$ 15.44
18	DB60-00437A		Nut-flange   (Replaces: DB60-30020A)			Immediately	$ 5.57
19	DB61-00932A		Case Cond		Appelez-nous	-
20	DB96-02044B		Assy Cond;aw06jcyab,add Cond I		Appelez-nous	-
21	DB60-30004A		Nut-flange		Appelez-nous	-
22	DB63-00765A		Gasket;r/comp,epdm,0.8,-,-,-,6		Appelez-nous	-
23	DB35-00022B		Relay Protector O/l;-,39a062hs		Appelez-nous	-
24	DB63-00765A		Gasket;r/comp,epdm,0.8,-,-,-,6		Appelez-nous	-
25	DB62-01314B		Tube Suction		Appelez-nous	-
26	39A050HSAKA		Rotary Compressor:115v,60hz,1p		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
