01 - Chassis Assembly
02 - Control Assembly
03 - Outer Case Assembly
04 - Supplemental Information
05 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

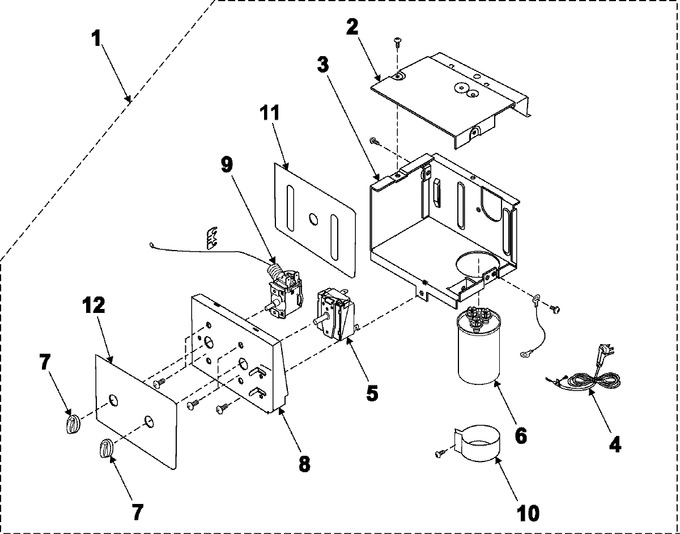

| 1 | DB93-02972B | Assy Control-box |
|
- | |||||
| 2 | DB61-00933D | Case Control-up |
|
- | |||||
| 3 | DB61-00934B | Case Control-low |
|
- | |||||
| 4 | DB93-02938B | Assy Power Cord |
|
- | |||||
| 5 | DB47-20074D | Thermostat |
|
$ 101.42 | |||||
| 6 | 2501-001296 | Capacitor (oil) |
|
- | |||||
| 7 | 555555 | Knob-assy;aw0503m/xaa,abs,-,-, (Replaces: DB64-01077A) |
|
$ 151.94 | |||||
| 8 | DB64-00901A | Panel Control;aw05n0yeb,abs,t2 |
|
- | |||||
| 9 | DB34-00046A | Switch-rotary |
|
- | |||||
| 10 | DB65-00031B | Clamper-core |
|
- | |||||
| 11 | DB61-30133E | Bracket-install |
|
- | |||||
| 12 | DB64-00952A | Inlay Control-m;y-pjt Mech,pc, |
|
- |
