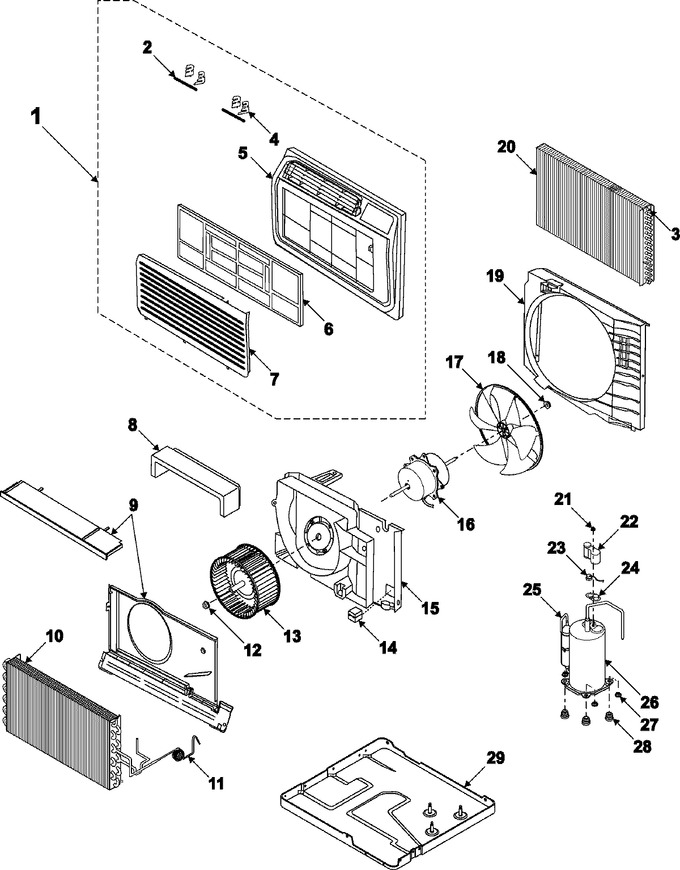

01 - Chassis Assembly


02 - Control Assembly


03 - Outer Case Assembly


04 - Supplemental Information


05 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DB92-00516J		Assy Panel Front		Appelez-nous	-
2	DB66-00368A		Link Blade		Appelez-nous	-
3	Y00000000		See Note Tube Discharge Currently Unavailable		Appelez-nous	-
4	DB66-00546A		Blade-v;aw05n0yea,hips,t2.0,-,		Appelez-nous	-
6	DB63-00806A		Guard-filter;aw05n0yea,hips,t2				$ 23.76
6	DB61-00191A		Guide-filter		Appelez-nous	-
7	DB64-00903A		Grille-air Inlet;aw05n0yeb,hip		Appelez-nous	-
8	DB61-00931A		Case Evap-up		Appelez-nous	-
8	DB90-00944D		Assy-evap Case Up		Appelez-nous	-
9	DB90-00898C		Assy-plate Evap Casing		Appelez-nous	-
10	DB96-01972E		Assy Evap		Appelez-nous	-
11	DB62-04120B		Tube Capillary		Appelez-nous	-
12	DB60-30004A		Nut-flange		Appelez-nous	-
13	DB67-00099A		Blower		Appelez-nous	-
14	DB62-04005A		Insulation-tube		Appelez-nous	-
15	DB94-00438C		Assy Partition		Appelez-nous	-
16	DB31-00035J		Motor Fan		Appelez-nous	-
17	DB67-00014A		Fan-propeller				$ 15.44
18	DB60-00437A		Nut-flange   (Replaces: DB60-30020A)			Immediately	$ 5.57
19	DB61-00932A		Case Cond		Appelez-nous	-
20	DB96-02044E		Assy Cond		Appelez-nous	-
21	6021-001142		Nut-hexagon Flange				$ 1.66
22	DB63-00762A		Cover Terminal;r/comp,ge Noryl		Appelez-nous	-
23	DB35-00022B		Relay Protector O/l;-,39a062hs		Appelez-nous	-
24	DB63-00765A		Gasket;r/comp,epdm,0.8,-,-,-,6		Appelez-nous	-
25	Y00000000		See Note Tube Suction Currently Unavailable		Appelez-nous	-
26	39A062HSAKA		Rotary Compressor:115v,60hz,1p				$ 401.11
27	DB60-30028A		Nut-washer		Appelez-nous	-
28	DB63-00764A		Grommet Isolator		Appelez-nous	-
29	DB90-02441A		Assy Base		Appelez-nous	-
NI	DB66-00663A		Blade-v-s;aw0503m/xaa,hips,t2.		Appelez-nous	-
