01 - Chassis Assembly
02 - Control Assembly
03 - Outer Case Assembly
04 - Supplemental Information
05 - Wiring Information
SELECT A DIAGRAM
New Model Search:

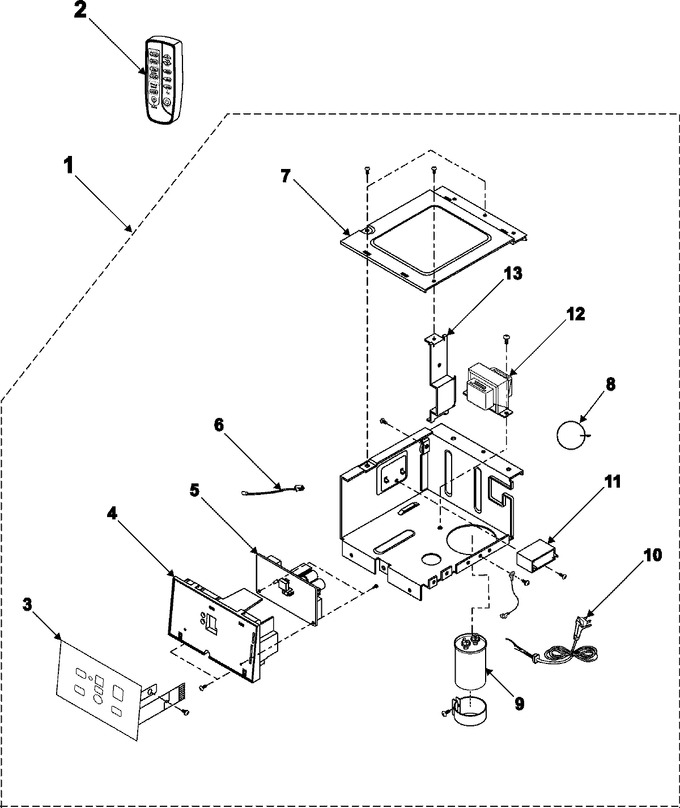

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DB93-03840A | Assy Control-box E |
|
- | |||||
| 2 | DB93-03018V | Assy Remocon |
|
$ 52.36 | |||||
| 3 | DB34-00051A | Switch Membrane |
|
- | |||||
| 4 | DB64-01411A | Panel Control |
|
- | |||||
| 5 | DB93-03566A | Assy Pcb Main |
|
- | |||||
| 6 | DB32-10051E | Thermistor |
|
$ 48.91 | |||||
| 7 | DB61-02468A | Case Control |
|
- | |||||
| 8 | DB65-00031B | Clamper-core |
|
- | |||||
| 9 | 2501-001229 | Capacitor (oil) |
|
- | |||||
| 10 | DB93-02938A | Assy Power Cord |
|
$ 142.69 | |||||
| 11 | 2301-001447 | C-film, Lead-other |
|
- | |||||
| 12 | DB26-00006G | Trans-power (ac115v,50/60hz) |
|
$ 96.33 | |||||
| 13 | Y00000000 | See Note Bracket-control Currently Unavailable |
|
- |
