SELECT A DIAGRAM

01 - Chassis Assembly


02 - Control Assembly


03 - Outer Case Assembly


04 - Supplemental Information


05 - Wiring Information

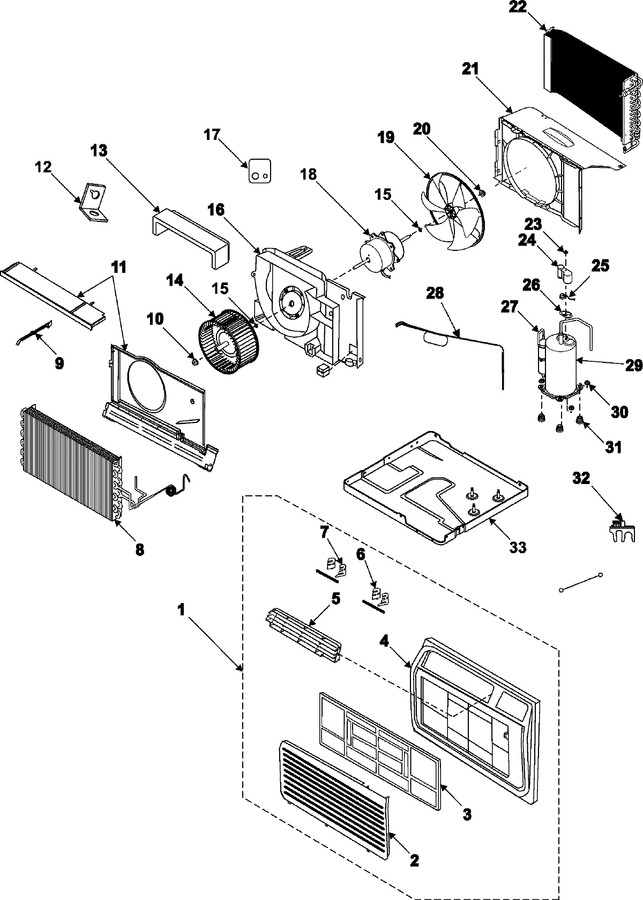

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DB92-00766A		Assy Panel		Appelez-nous	-
2	DB64-01414A		Grille		Appelez-nous	-
3	DB63-01422B		Guard Filter		Appelez-nous	-
3	DB61-00191A		Guide-filter		Appelez-nous	-
4	DB64-01413A		Panel Front		Appelez-nous	-
5	DB61-02473A		Frame-blade		Appelez-nous	-
6	DB66-00998A		Blade-vl		Appelez-nous	-
7	DB66-00999A		Blade-vs		Appelez-nous	-
8	DB96-05259B		Assy Evap		Appelez-nous	-
9	DB66-00557B		Lever-damper		Appelez-nous	-
10	DB60-30004A		Nut-flange		Appelez-nous	-
11	DB94-00905A		Assy-plate Evap Casing		Appelez-nous	-
12	DB61-30133E		Bracket-install		Appelez-nous	-
13	DB61-02469A		Case Evap		Appelez-nous	-
14	DB67-00099A		Blower		Appelez-nous	-
15	DB60-00154B		Fastener-motor;-,mswr10,-,t2.0		Appelez-nous	-
16	DB67-00621A		Partition		Appelez-nous	-
17	DB62-04006A		Insulation Tube		Appelez-nous	-
18	DB31-00340A		Motor Fan				$ 160.24
19	DB67-00014A		Fan-propeller				$ 15.44
20	DB60-00437A		Nut-flange   (Replaces: DB60-30020A)			Immediately	$ 5.57
21	DB61-02470A		Case Cond		Appelez-nous	-
22	DB96-05260A		Assy Cond		Appelez-nous	-
23	6021-001142		Nut-hexagon Flange				$ 1.66
24	Y00000000		See Note Cover Terminal Currently Unavailable		Appelez-nous	-
25	DB35-00022B		Relay Protector O/l;-,39a062hs		Appelez-nous	-
26	DB63-00765A		Gasket;r/comp,epdm,0.8,-,-,-,6		Appelez-nous	-
27	DB96-05261A		Assy Tube Suction		Appelez-nous	-
28	DB96-05251A		Assy Tube Capillary		Appelez-nous	-
29	39A062HSAEA		Rotary-comp; 115v-60hz		Appelez-nous	-
30	Y00000000		See Note Nut-washer Currently Unavailable		Appelez-nous	-
31	DB63-00764A		Grommet Isolator		Appelez-nous	-
32	DB61-40251A		Holder-sensor		Appelez-nous	-
33	DB90-02475A		Assy Base		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
