01 - Chassis Assembly
02 - Control Assembly
03 - Outer Case Assembly
04 - Supplemental Information
05 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

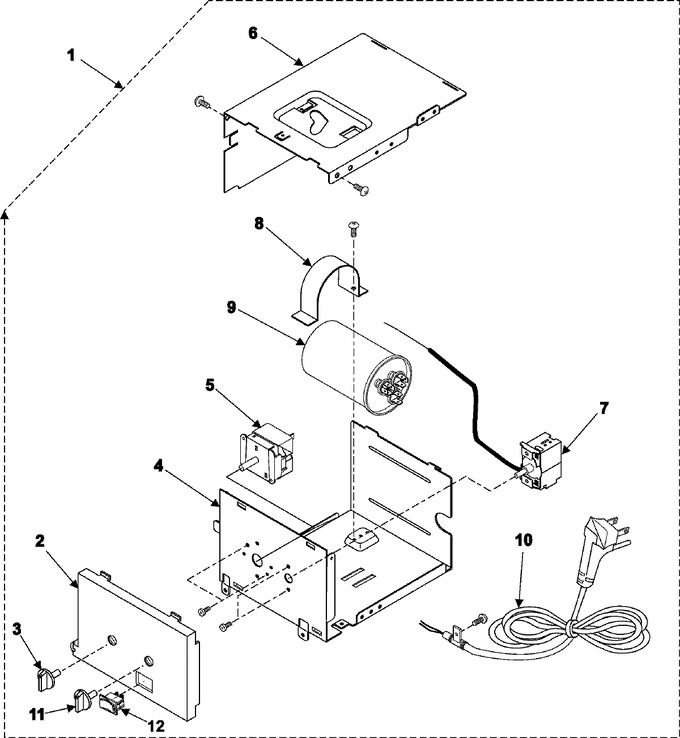

| 1 | DB93-00261E | Assy-control |
|
- | |||||
| 2 | DB64-00122D | Panel Control |
|
- | |||||
| 3 | DB67-60012A | Spring-knob |
|
- | |||||
| 3 | DB64-50128A | Knob-thermo |
|
- | |||||
| 4 | Y00000000 | See Note Case Control-low Currently Unavailable |
|
- | |||||
| 5 | 3406-001046 | Switch-rotary |
|
- | |||||
| 6 | Y00000000 | See Note Case Control-up Sm(m) Currently Unavailable |
|
- | |||||
| 7 | DB47-20074E | Thermostat |
|
- | |||||
| 8 | DB65-10008B | Clip-capacitor |
|
- | |||||
| 9 | 2501-001176 | C-oil |
|
- | |||||
| 10 | DB39-10032K | Power Cord |
|
- | |||||
| 11 | DB64-50138A | Knob, Thermostat |
|
$ 4.62 | |||||
| 11 | DB67-60012A | Spring-knob |
|
- | |||||
| 12 | 3401-001028 | Switch-toggle |
|
- |
