01 - Chassis Assembly
02 - Control Assembly
03 - Outer Case Assembly
04 - Supplemental Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

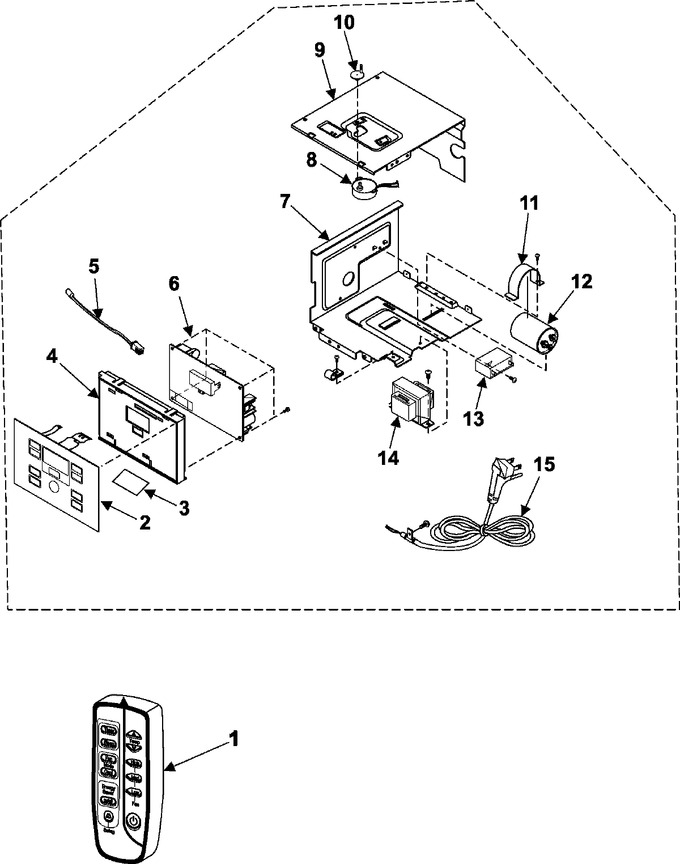

| 1 | DB93-00284K | Assy Remocon |
|
- | |||||
| 2 | DB34-00013B | Switch, Membrane |
|
- | |||||
| 3 | DB64-00321A | Window Remocon |
|
- | |||||
| 4 | Y00000000 | See Note Panel Control Currently Unavailable |
|
- | |||||
| 5 | DB32-10051B | Thermistor |
|
- | |||||
| 6 | DB93-00407A | Pcb Main Assembly |
|
- | |||||
| 7 | DB61-00417A | Case Control-low |
|
- | |||||
| 8 | DB31-00084A | Motor-synchronous |
|
- | |||||
| 9 | DB61-00419A | Case Control-up Sm(e) |
|
- | |||||
| 10 | DB66-70031A | Arm-blade |
|
- | |||||
| 11 | DB65-10008B | Clip-capacitor |
|
- | |||||
| 12 | 2501-001226 | C-oil |
|
- | |||||
| 13 | 2301-001449 | C-film,mpe-ppf |
|
- | |||||
| 14 | DB26-00006B | Trans-power |
|
- | |||||
| 15 | DB39-00343A | Power Cord-ass`y |
|
- |
