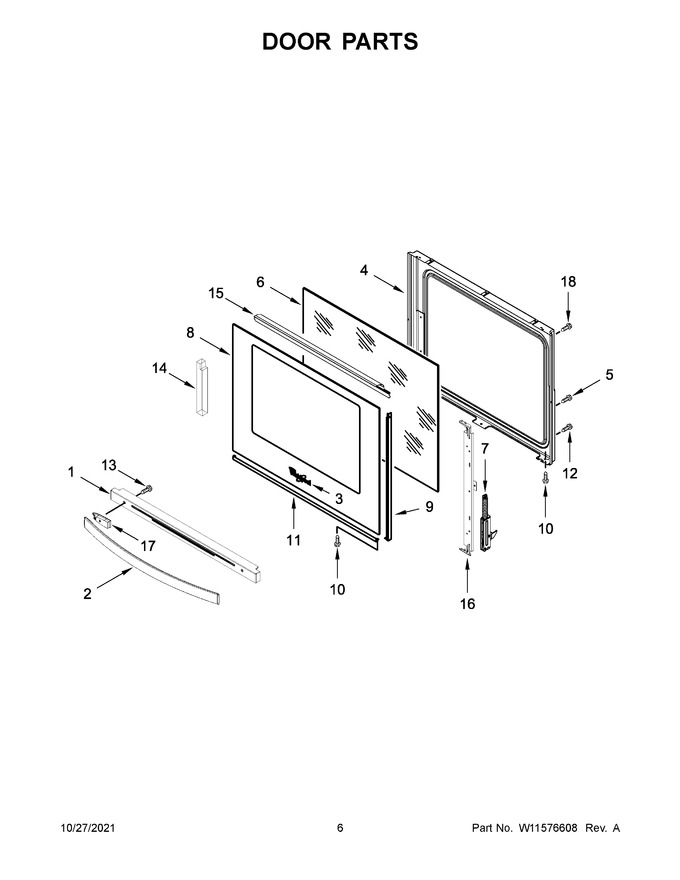

04 - Door Parts


05 - Drawer Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11106937		Trim, Vent (white)   (Replaces: W10880612)			Immediately	$ 146.44
2	W11107407		Assembly, Door Handle (white)   (Replaces: W11022644)				$ 237.48
3	W11178521		Badge   (Replaces: W10884775)			Immediately	$ 63.13
4	WPW10297318		Liner, Door   (Replaces: W10297318)			Immediately	$ 331.51
5	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 8.74
6	WPW10300487		Glass, Inner   (Replaces: W10300487)				$ 252.42
7	WPW10440013		Hinge, Door (active)   (Replaces: W10440013)			Immediately	$ 63.80
8	W11107890		Assembly, Outer Door (white)   (Replaces: W10871830)				$ 368.61
9	W10334003		Trim, Door Side (white)			Immediately	$ 84.58
10	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 8.80
11	WPW10333990		Trim, Door (white)   (Replaces: W10333990)			Immediately	$ 51.90
12	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 8.26
13	W10896982		Screw   (Replaces: W10477496)				$ 8.40
14	W11688565		Insulation, Door   (Replaces: W10772958)				$ 27.02
15	W10294853		Bracket, Glass Liner			Immediately	$ 237.04
16	W11116956		Rail, Door   (Replaces: W10294851)				$ 133.75
17	W10917797		Standoff, Handle (white)			Immediately	$ 72.01
18	WPW10317886		Screw   (Replaces: W10317886)			Immediately	$ 8.20
11A	W10334031		Trim, Door (black)				$ 77.86
17A	W10917796		Standoff, Handle (black)				$ 72.01
1A	W11106938		Trim, Vent (black)   (Replaces: W10880611)				$ 142.25
2A	W11107394		Assembly, Door Handle (black)   (Replaces: W11022643)				$ 229.46
8A	W11705268		Assembly, Outer Door (black)   (Replaces: W10871829)			Immediately	$ 135.33
9A	W10334004		Trim, Door Side (black)				$ 233.76
