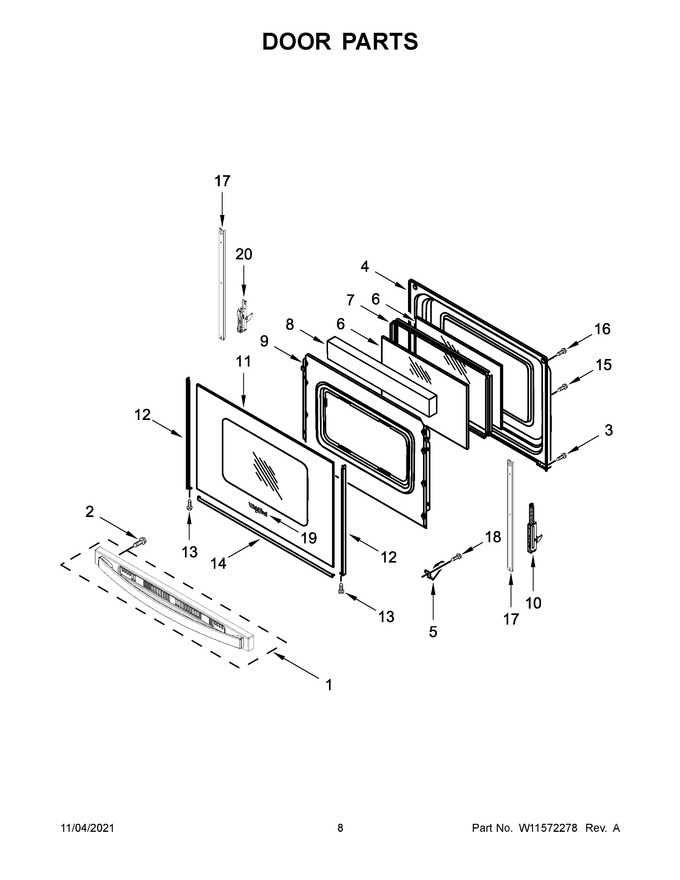

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11590861		Handle And Vent Assembly (white)   (Replaces: W11242947)			Immediately	$ 199.15
2	W10831019		Screw   (Replaces: W10480830)			Immediately	$ 8.27
3	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 8.26
4	WP9761344		Liner, Door   (Replaces: 9761344)			Immediately	$ 372.89
5	W10137382		Clip, Panel			Immediately	$ 48.42
6	WP8053948		Glass, Inner   (Replaces: 9758162)				$ 178.28
7	WPW10316950		Frame, Glass   (Replaces: W10316950)			Immediately	$ 90.09
8	WPW10278991		Insulation, Door Strip   (Replaces: W10278991)			Immediately	$ 101.37
9	W11539580		Retainer, Insulation   (Replaces: 9761357)				$ 233.31
10	WPW10299226		Hinge, Active   (Replaces: W10299226)			Immediately	$ 72.76
11	WPW10409945		Glass, Outer (white)   (Replaces: W10409945)			Immediately	$ 248.79
12	WP8523172		Trim, Door Side (white (left))   (Replaces: 8523172)			Immediately	$ 69.93
13	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 8.80
14	W11594186		Trim, Bottom (white)   (Replaces: 8523175)			Immediately	$ 61.37
15	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 8.74
16	WPW10200660		Screw   (Replaces: W10200660)			Immediately	$ 8.24
17	W11502236		Strap, Door   (Replaces: W11379944)			Immediately	$ 27.68
18	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.55
19	W11178521		Badge   (Replaces: W10884775)			Immediately	$ 63.13
20	WPW10299227		Hinge, Door (passive)   (Replaces: W10299227)			Immediately	$ 70.74
12A	WP8523166		Trim, Door Side (white (right))   (Replaces: 8523166)			Immediately	$ 84.23

    View Diagram in Separate Window       Print Part List
