SELECT A DIAGRAM

01 - Cover Sheet

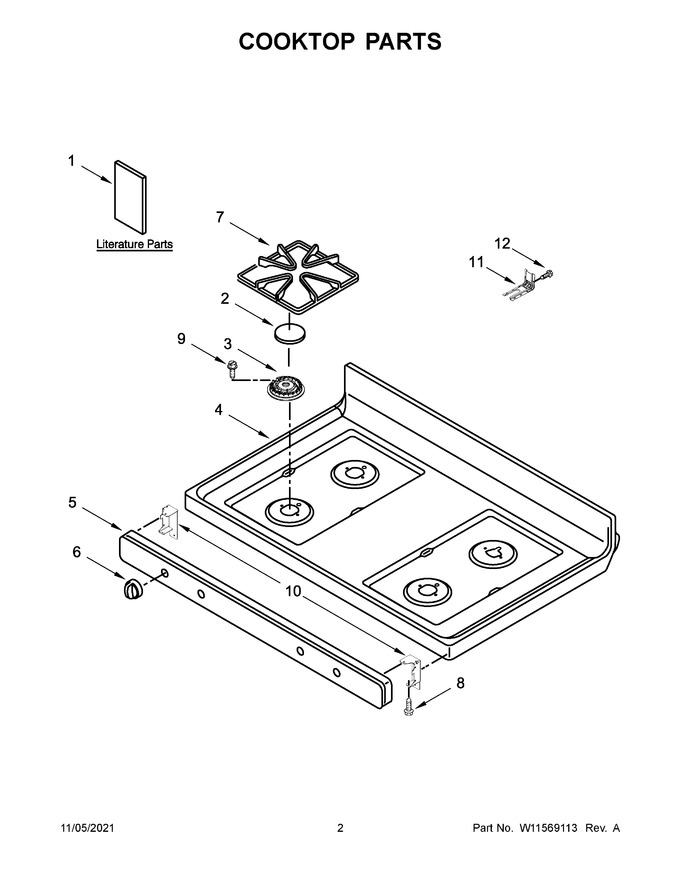

02 - Cooktop Parts


03 - Control Panel Parts


04 - Manifold Parts


05 - Chassis Parts


06 - Drawer And Broiler Parts


07 - Door Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11427467		Quick Start Guide		Appelez-nous	-
2	W11455147		Set, Burner Cap (black (set Of 4))   (Replaces: W11395131)			Immediately	$ 99.73
3	W11435630		Spreader, Flame (left Front & Right Front)   (Replaces: W11352018)			Immediately	$ 82.12
4	W11480487		Cooktop (white)   (Replaces: W11418037)				$ 421.60
5	WP8523854		Panel, Manifold (white)   (Replaces: 8523854)				$ 290.58
6	W11788674		Knob, Control (white)   (Replaces: W10844794)				$ 8.49
7	W10915784		Grate Kit (set Of Four) (black)   (Replaces: W10682667)				$ 363.14
8	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
9	W11241230		Screw   (Replaces: W10673618)			Immediately	$ 14.73
10	8523249		Bracket, Manifold		Appelez-nous	-
11	W11839019		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 28.54
12	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
1A	W11450808		Owners Manual		Appelez-nous	-
1B	W10873899		Tech Sheet		Appelez-nous	-
1C	W11326946		Wiring Diagram		Appelez-nous	-
3A	W11435659		Spreader, Flame (right Rear)   (Replaces: W11352020)				$ 84.85
3B	W11435657		Spreader, Flame (left Rear)   (Replaces: W11352021)				$ 84.43
NI	7111P01760		Clamp, Wire		Appelez-nous	-
NI	W11453753		Harness, Main		Appelez-nous	-
NI	W11645866		Harness, Bake/broil   (Replaces: W11450461)				$ 38.49
NI	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
NI	W10334923		Clip, Gas Wiring		Appelez-nous	-
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 89.00
NI	3196896		Clip, Wire		Appelez-nous	-
NI	NP		Following Parts Not Illustrated		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
