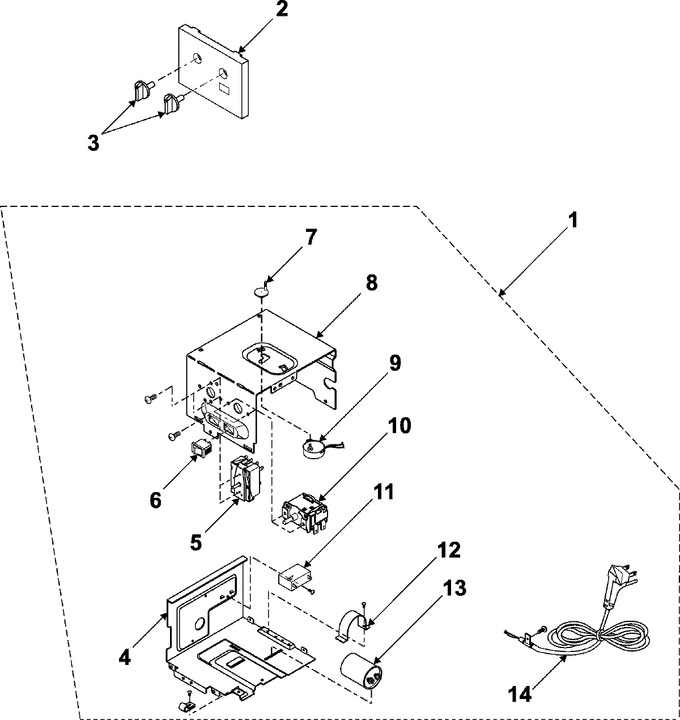

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | DB64-00258D | Panel Control |
|
- | |||||
| 3 | DB64-50138A | Knob, Thermostat |
|
$ 4.62 | |||||
| 4 | DB61-00417A | Case Control-low |
|
- | |||||
| 5 | 3406-001045 | Switch, Rotary (240v) |
|
$ 47.74 | |||||
| 6 | 3401-001030 | Switch-toggle |
|
- | |||||
| 7 | Y00000000 | See Note Arm-blade Currently Unavailable |
|
- | |||||
| 8 | DB61-00418A | Case Control-up Sm(m) |
|
- | |||||
| 9 | DB95-20065F | Assy-motor Swing |
|
- | |||||
| 10 | DB47-20074G | Thermostat;m-p/j,-,-,-,-,-,-,- |
|
- | |||||
| 11 | 2301-001449 | C-film,mpe-ppf |
|
- | |||||
| 12 | DB65-10008B | Clip-capacitor |
|
- | |||||
| 13 | 2501-001228 | Capacitor (oil) |
|
- | |||||
| 14 | DB39-00343A | Power Cord-ass`y |
|
- |
