View Diagram in Separate Window
Print Part List

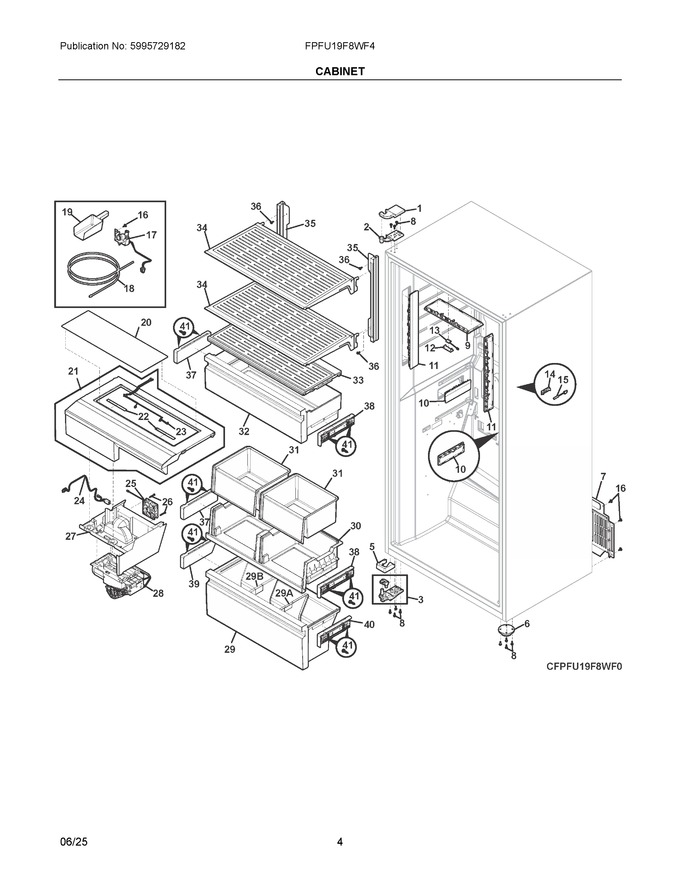

SELECT A DIAGRAM
01 - Cover Sheet
02 - Door
03 - Cabinet
04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304524639 | Cover, Hinge, Stainless, Lh Upper |
|
$ 12.41 | |||||
| 2 | 5304524637 | Hinge, Door, Lh Upper |
|
$ 196.63 | |||||
| 3 | 5304525229 | Hinge Assembly, Lower, Lh |
|
Immediately | $ 80.05 | ||||
| 4 | 5304525229 | Bearing Assembly, Lower Hinge, Lh, W/stop (Replaces: 5304525227) |
|
Immediately | $ 80.05 | ||||
| 5 | 5304525228 | Cover, Hinge, Lh Lower |
|
$ 12.05 | |||||
| 6 | 5304528813 | Base, Leveler Leg, Front |
|
Immediately | $ 17.23 | ||||
| 7 | 5304525858 | Cover, Access, Machine Compt. |
|
$ 61.86 | |||||
| 8 | 5304522279 | Screw, Hex Wsh Hd Quad, M5 X 16 |
|
Immediately | $ 3.42 | ||||
| 9 | 5304536788 | Light Assembly, Led, 2x Upper, W/lens, Pcb, Harn (Replaces: 5304524657) |
|
$ 59.49 | |||||
| 10 | 5304524656 | Light Assembly, Led, 1x, W/lens, Pcb, Harn |
|
Immediately | $ 61.86 | ||||
| 11 | 5304524658 | Light Assembly, Led, 3x, W/lens, Pcb, Harn |
|
$ 133.59 | |||||
| 12 | 5304524761 | Cover, Reed Switch |
|
$ 12.05 | |||||
| 13 | 5304527992 | Switch, Reed (Replaces: 242326001) |
|
Immediately | $ 90.77 | ||||
| 14 | 5304524759 | Cover, Sensor |
|
$ 12.05 | |||||
| 15 | 5303918775 | Thermistor Kit, Temperature, Ntc, W/connectors |
|
Immediately | $ 26.38 | ||||
| 16 | 241500305 | Screw, Hex Washer Head, 8-18ab X 0.625 (Replaces: 241500304) |
|
$ 3.37 | |||||
| 17 | 5304538014 | Valve, Water, Single Solenoid (Replaces: 5304520540) |
|
Immediately | $ 51.73 | ||||
| 18 | 5304536764 | Tube, Water (Replaces: 218976828) |
|
Immediately | $ 22.86 | ||||
| 19 | 5304529200 | Scoop, Ice (Replaces: 5304524712) |
|
$ 11.80 | |||||
| 20 | 5304524780 | Glass, Control Cover |
|
$ 114.87 | |||||
| 21 | 140130183233 | Control Cover, Assembly, White, Complete (Replaces: 5304524715) |
|
$ 234.80 | |||||
| 22 | 5304524650 | Pc Board, Led Polaris, 6500k |
|
Immediately | $ 62.36 | ||||
| 23 | 5304524766 | Harness, Jumper, Led |
|
$ 12.29 | |||||
| 24 | 5304524779 | Harness, Inetrmediate, To Ice Maker |
|
$ 31.77 | |||||
| 25 | 5304524796 | Motor, Fan, Ice Maker |
|
Immediately | $ 195.94 | ||||
| 26 | 241953905 | Screw, 8-18 X 1.25 |
|
Immediately | $ 12.64 | ||||
| 27 | 5304524652 | Housing, Ice Maker |
|
$ 57.04 | |||||
| 28 | 243297610 | Ice Maker, Assembly, 6-pin |
|
Immediately | $ 171.46 | ||||
| 29 | 5304524710 | Drawer Assembly, Full Width, Lower, W/dividers |
|
$ 269.60 | |||||
| 30 | 5304524708 | Shelf Assembly, Slide Out |
|
$ 193.59 | |||||
| 31 | 140130150026 | Basket, Ice (Replaces: 5304524711) |
|
$ 60.46 | |||||
| 32 | 5304524702 | Drawer Assembly, Full Width, Upper |
|
Immediately | $ 231.23 | ||||
| 33 | 140266479033 | Cover Assembly, Crisper, Upper, W/front Gasket (Replaces: 5304524683) |
|
- | |||||
| 34 | 5304524671 | Shelf Assembly, Metalic |
|
Immediately | $ 208.85 | ||||
| 35 | 5304539145 | Rail, Shelf Support (Replaces: 5304524841) |
|
- | |||||
| 36 | 5304519765 | Screw, Hx Wash Hd, M4.2 X 12 |
|
Immediately | $ 3.37 | ||||
| 37 | 5304524850 | Slide Assembly, 9 Inch, Lh |
|
$ 102.02 | |||||
| 38 | 5304524849 | Slide Assembly, 9 Inch, Rh |
|
$ 101.21 | |||||
| 39 | 5304524852 | Slide Assembly, 8 Inch, Lh |
|
$ 97.20 | |||||
| 40 | 5304524851 | Slide Assembly, 8 Inch, Rh |
|
$ 97.20 | |||||
| 41 | 5304524845 | Screw, Quad Hilo, 4.2x1.41x15.9, Slide Mtg |
|
Immediately | $ 3.21 | ||||
| 29A | 5304525861 | Divider, Lower Drawer, Rh |
|
Immediately | $ 38.56 | ||||
| 29B | 5304525862 | Divider, Lower Drawer, Lh |
|
Immediately | $ 36.15 |
