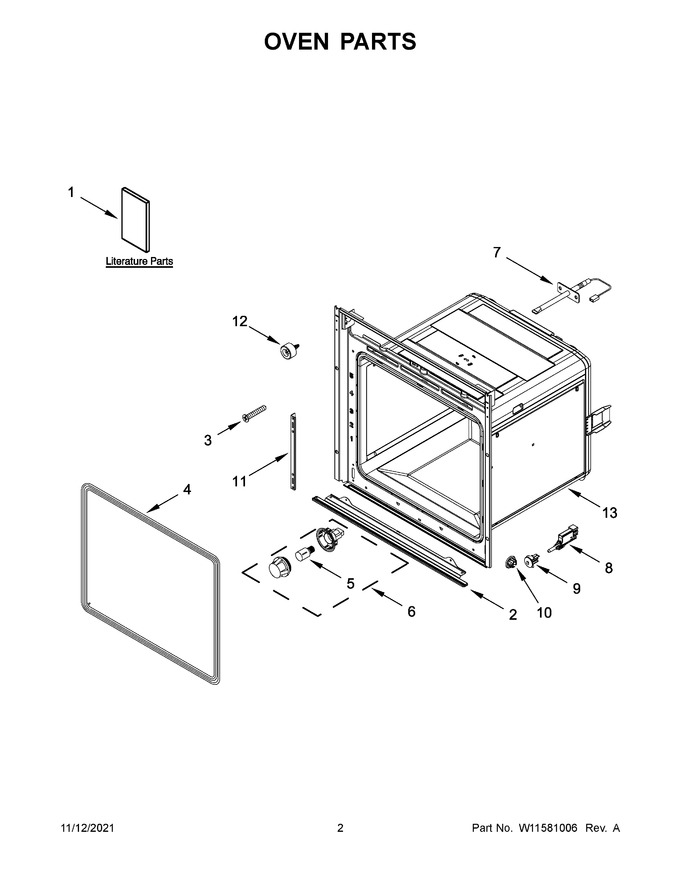

02 - Oven Parts
03 - Control Panel Parts
04 - Oven Door Parts
05 - Internal Oven Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 501931002022 | Installation Instructions |
|
- | |||||
| 2 | W10517979 | Trim, Lower |
|
Immediately | $ 81.20 | ||||
| 3 | W10519818 | Kit, Oven Screws |
|
$ 15.66 | |||||
| 4 | W10519051 | Gasket, Door |
|
$ 24.83 | |||||
| 5 | W11791037 | Bulb, Halogen 40 Watt (Replaces: W10518971) |
|
Immediately | $ 36.12 | ||||
| 6 | W11237410 | Assembly, Bulb Includes Socket And Lens Cover (Replaces: W10638530) |
|
Immediately | $ 23.66 | ||||
| 7 | W10519097 | Probe, Oven Temperature |
|
Immediately | $ 46.65 | ||||
| 8 | W10519088 | Assembly, Door Switch |
|
Immediately | $ 24.18 | ||||
| 9 | W10519094 | Joint, Door Switch |
|
Immediately | $ 5.05 | ||||
| 10 | W10519101 | Plug, Oven |
|
$ 6.39 | |||||
| 11 | W11581007 | Hinge, Running Mechanism |
|
- | |||||
| 12 | W10578780 | Bumper |
|
$ 23.38 | |||||
| 13 | NP | Cabinet (not Serviced) |
|
- | |||||
| 1A | 501931001359 | Use And Care Guide |
|
- | |||||
| 1B | 501931002023 | Tech Sheet |
|
- | |||||
| NI | NP | Cabinet (not Serviced) |
|
- | |||||
| NI | W11237388 | Kit, Power Cord (no Plug) (Replaces: W10472786) |
|
$ 124.79 |
