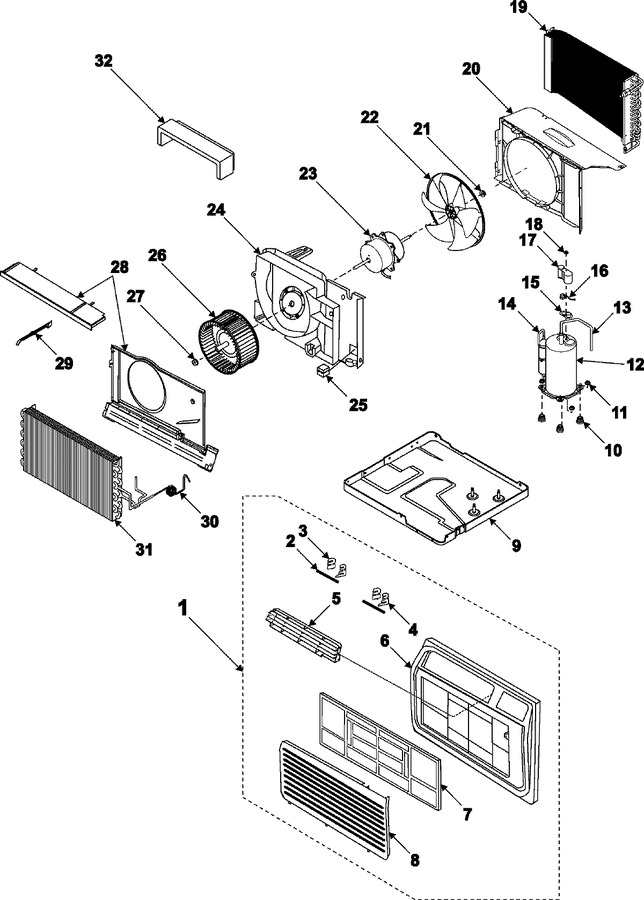

01 - Chassis Assembly


02 - Control Assembly


03 - Outer Case Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DB92-00515C		Assy Panel Front;-,sea-walmart		Appelez-nous	-
2	DB66-00558A		Link Blade;h1-pjt,top,pp,l106.		Appelez-nous	-
3	Y00000000		See Note Part No. Db66-00556a Currently Not Available. Must Order Assypanel Front, Item No. 1.		Appelez-nous	-
4	Y00000000		See Note Part No. Db66-00555a Currently Not Available. Must Order Assypanel Front, Item No. 1.		Appelez-nous	-
5	DB61-01530A		Frame-blade;h1-p/j,top,sea,hip		Appelez-nous	-
6	DB64-00916A		Panel Front;h1-p/j,hips,t2.0,w		Appelez-nous	-
7	DB63-00810A		Guard-air Filter;h1-p/j,hips,t		Appelez-nous	-
8	DB64-01089A		Grille-air Inlet;h1-pjt,hips,-		Appelez-nous	-
9	DB90-01255A		Assy Base;h1-p/j,-		Appelez-nous	-
10	Y00000000		See Note Part Currently Not Available.		Appelez-nous	-
11	DB60-30028A		Nut-washer		Appelez-nous	-
12	44A080HUAEB		Rotary Comp:115v,60hz		Appelez-nous	-
13	Y00000000		See Note Part No. Db62-02269a Currently Not Available.		Appelez-nous	-
14	Y00000000		See Note Part No. Db62-02270a Currently Not Available.		Appelez-nous	-
15	DB63-00765A		Gasket;r/comp,epdm,0.8,-,-,-,6		Appelez-nous	-
16	DB35-00022A		Relay Protector O/l;-,44a080hu		Appelez-nous	-
17	DB63-00762A		Cover Terminal;r/comp,ge Noryl		Appelez-nous	-
18	DB60-30001A		Nut-terminal Cover		Appelez-nous	-
19	DB96-03161B		Assy-cond;aw0803b/xaa,+1 Hair		Appelez-nous	-
20	DB61-01532A		Case Cond-l;h1-p/j,pp,t2.0,w44		Appelez-nous	-
21	DB60-00437A		Nut-flange   (Replaces: DB60-30020A)			Immediately	$ 5.57
22	DB67-50077A		Fan, Propeller				$ 53.27
23	DB31-00215A		Motor Fan;ysk40-6s-1,h1-pjt,-,				$ 129.06
24	DB94-00416A		Assy Partition;h1-p/j,-		Appelez-nous	-
25	DB73-00177A		Rubber-cover Pipe;h-pjt,nbr-fo		Appelez-nous	-
26	DB67-50078A		Blower		Appelez-nous	-
27	DB60-30004A		Nut-flange		Appelez-nous	-
28	DB90-01257A		Assy-plate Evap Casing;h1-p/j,		Appelez-nous	-
29	DB66-00557A		Lever-damper;h1-p/j,abs,-,-,-,		Appelez-nous	-
30	DB62-02298A		Tube Capillary;-,c1220t-h,-,-,		Appelez-nous	-
31	DB96-02987A		Assy Evap		Appelez-nous	-
32	DB90-01266A		Assy Case-upper;aw0803m/xaa,h1		Appelez-nous	-
