SELECT A DIAGRAM

01 - Cover Sheet


02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts

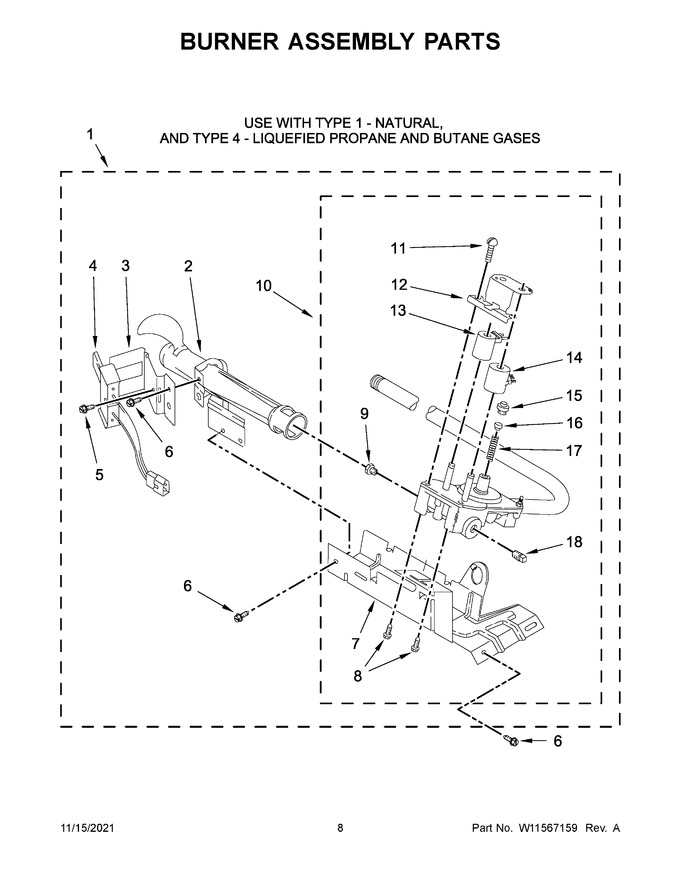

05 - Burner Assembly Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11455074		Burner Assembly (50 Hz) (type 1 And 2)		Appelez-nous	-
2	WP693140		Tube, Burner   (Replaces: 688617)				$ 188.87
3	WP694298		Bracket, Ignitor   (Replaces: 694298)				$ 27.22
4	279311		Ignitor   (Replaces: 686590)			Immediately	$ 78.90
5	WPW10366705		Screw   (Replaces: W10366705)				$ 7.88
6	WP681414		Screw   (Replaces: 343641)			Immediately	$ 8.47
7	693986		Base, Burner		Appelez-nous	-
8	WP693995		Screw   (Replaces: 3387057)			Immediately	$ 7.55
9	234660		Orifice, Burner (type 1 (natural))				$ 4.91
10	WP8281918		Valve Gas 50 Hz. (complete)   (Replaces: 8281918)				$ 242.35
11	694421		Screw, Coil		Appelez-nous	-
12	694538		Bracket, Coil				$ 72.05
13	WP307930		Coil, 50 Hz.   (Replaces: 695297)				$ 111.00
14	WPY307931		Coil, 50 Hz. (split)   (Replaces: 695298)				$ 121.46
15	WP694424		Leak, Limiter   (Replaces: 694424)				$ 36.30
16	WP694423		Screw, Regulator Adjustment   (Replaces: 694423)				$ 7.30
17	WP694422		Spring, Regulator   (Replaces: 694422)				$ 25.48
18	W10295523		Pipe Plug		Appelez-nous	-
NI	NP		Cabinet (not Serviced)		Appelez-nous	-
NI	49572A		Conversion Kit (type 1 And 2) To Type (4) L.p.g.			Immediately	$ 36.19

    View Diagram in Separate Window       Print Part List
