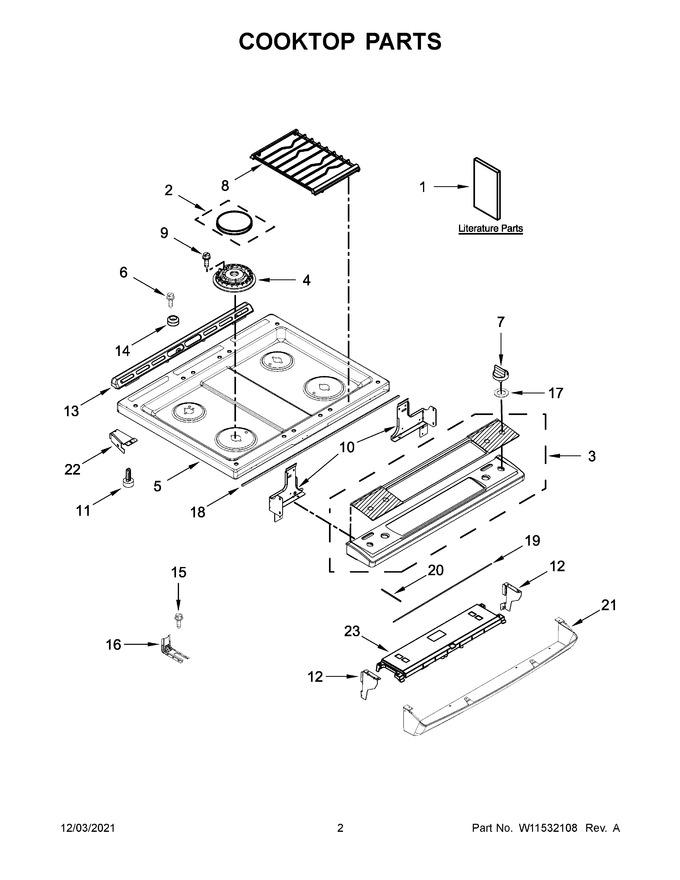

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11426595		Owners Manual		Appelez-nous	-
2	W11173535		Burner Cap Kit (set Of 4) (black)   (Replaces: W10825883)				$ 92.01
3	W10893960		Console, Assembly (stainless)   (Replaces: W10851005)				$ 593.97
4	W11211506		Spreader, Flame (left Front & Right Front)   (Replaces: W10732322)				$ 130.80
5	W10897891		Cooktop (black)   (Replaces: W11341045)				$ 648.85
6	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
7	W11517334		Knob (stainless)   (Replaces: W10850033)			Immediately	$ 57.62
8	W11384202		Kit, Grate (set Of 2) (black)   (Replaces: W11241651)				$ 392.48
9	W11244557		Screw   (Replaces: 3196173)				$ 14.29
10	W10814303		Support, Cooktop (left)		Appelez-nous	-
11	8016P02260		Glide, Main Top		Appelez-nous	-
12	W10547960		Bracket, Console (left)				$ 23.22
13	W11256338		Trim, Vent (black)   (Replaces: W10577781)				$ 205.56
14	W11690600		Bumper   (Replaces: W10854253)			Immediately	$ 14.91
15	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
16	W11502257		Bracket, Anti-tip   (Replaces: W11379947)			Immediately	$ 23.03
17	W11131701		Bushing (black)   (Replaces: W10739036)				$ 23.27
18	W10802441		Gasket, Console/ Cooktop   (Replaces: W10612719)			Immediately	$ 22.73
19	W10802457		Gasket, Console   (Replaces: W10689101)				$ 21.33
20	W11744482		Gasket, Console Short   (Replaces: W10689102)				$ 22.92
21	W10894124		Console, Lower Panel (black)   (Replaces: W10816943)				$ 560.36
22	W10162253		Brace, Corner (left)				$ 74.13
23	W11310915		Electronic, Control (lcx)   (Replaces: W11204499)				$ 518.21
10A	W10814304		Support, Cooktop (right)		Appelez-nous	-
10B	W10814305		Bracket, Console (center)		Appelez-nous	-
12A	W10547961		Bracket, Console (right)				$ 23.22
1A	W11428054		Quick Start Guide		Appelez-nous	-
1B	W11324925		Sheet, Tech		Appelez-nous	-
22A	W10162252		Brace, Corner (right)				$ 78.59
4A	W11699919		Spreader, Flame (left Rear)   (Replaces: W10732319)				$ 167.33
4B	W11708326		Spreader, Flame (right Rear)   (Replaces: W10732320)				$ 47.80
NI	7111P01760		Clamp, Wire		Appelez-nous	-
NI	W11451597		Harness, Main		Appelez-nous	-
NI	W10817974		Harness, Console		Appelez-nous	-
NI	W10580229		Wire, Ground				$ 38.22
NI	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 89.00
NI	NP		Cabinet (not A Serviceable Part)		Appelez-nous	-
NI	W11450462		Harness, Bake/broil				$ 111.94
