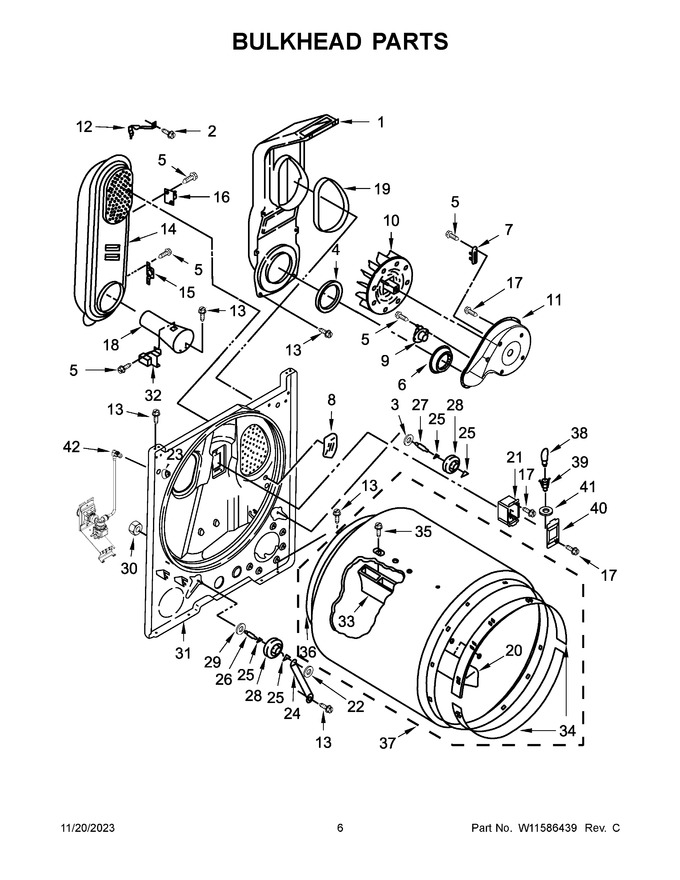

04 - Bulkhead Parts
05 - Burner Assembly Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11117429 | Assembly, Lint Chute (Replaces: W10798023) |
|
$ 175.01 | |||||
| 2 | WP489463 | Screw (Replaces: 489463) |
|
$ 7.82 | |||||
| 3 | WP3388703 | Washer (Replaces: 3388703) |
|
$ 7.47 | |||||
| 4 | W11415783 | Seal, Lint Chute (Replaces: 347139) |
|
Immediately | $ 18.23 | ||||
| 5 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 7.82 | ||||
| 6 | W11233063 | Shield, Exhaust (Replaces: W10389567) |
|
$ 22.29 | |||||
| 7 | WP3392519 | Fuse, Thermal (91c) (Replaces: 3392519) |
|
Immediately | $ 24.95 | ||||
| 8 | W11545746 | Pad, Sensor (Replaces: W11424720) |
|
Immediately | $ 28.92 | ||||
| 9 | WP8577274 | Thermistor (Replaces: 8577274) |
|
Immediately | $ 43.61 | ||||
| 10 | WP694089 | Wheel, Blower (Replaces: 694089) |
|
Immediately | $ 37.66 | ||||
| 11 | WP8577230 | Housing, Blower (Replaces: 8577230) |
|
$ 177.95 | |||||
| 12 | 279771 | Clip, Heater Box (Replaces: 3398161) |
|
$ 14.33 | |||||
| 13 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 14 | 279980 | Box, Heater (96c) (Replaces: 8530285) |
|
$ 315.51 | |||||
| 15 | W11050897 | Thermostat, High Limit Spst (180f) (Replaces: W10754607) |
|
Immediately | $ 15.30 | ||||
| 16 | W11050897 | Kit, Thermal Cut-off (includes Thermostat) |
|
Immediately | $ 15.30 | ||||
| 17 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.79 | ||||
| 18 | WP8066049 | Funnel, Burner (Replaces: 8066049) |
|
$ 149.05 | |||||
| 19 | WP339956 | Seal (Replaces: 339956) |
|
Immediately | $ 8.63 | ||||
| 20 | WP3403636 | Baffle, Drum (short) (Replaces: 3403636) |
|
$ 138.66 | |||||
| 21 | 8578825 | Bracket, Drum Light |
|
$ 20.88 | |||||
| 22 | WP90296 | Nut, Push On (Replaces: 90296) |
|
$ 7.85 | |||||
| 23 | W11230609 | Nozzle, Cap (Replaces: W11100488) |
|
Immediately | $ 7.85 | ||||
| 24 | W11684613 | Bracket, Support (Replaces: W11032820) |
|
$ 20.94 | |||||
| 25 | WPW10512946 | Washer, Tri Ring (Replaces: W10512946) |
|
Immediately | $ 8.80 | ||||
| 26 | WPW10359270 | Shaft, Drum Roller - Left Hand Thread (Replaces: W10359270) |
|
Immediately | $ 72.71 | ||||
| 27 | WPW10359269 | Shaft, Drum Roller - Right Hand Thread (Replaces: W10359269) |
|
Immediately | $ 47.30 | ||||
| 28 | 349241T | Roller, Support (Replaces: 3397590) |
|
Immediately | $ 29.53 | ||||
| 29 | WP348197 | Washer (Replaces: 348197) |
|
$ 7.19 | |||||
| 30 | W11229607 | Nut, Hex (Replaces: W10298789) |
|
Immediately | $ 7.74 | ||||
| 31 | W11112242 | Bulkhead (Replaces: W10714471) |
|
$ 347.14 | |||||
| 32 | WP338906 | Sensor, Radiant (Replaces: 338906) |
|
Immediately | $ 51.91 | ||||
| 33 | WP692490 | Baffle, Drum (long) (Replaces: 692490) |
|
$ 159.27 | |||||
| 34 | 279441 | Bearing, Ring (Replaces: 692526) |
|
Immediately | $ 66.22 | ||||
| 35 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 7.75 | ||||
| 36 | W10612022 | Seal, Rear Drum (Replaces: W10856781) |
|
Immediately | $ 57.15 | ||||
| 37 | W10899578 | Assembly, Drum (complete) (Replaces: W10757750) |
|
$ 357.65 | |||||
| 38 | WP22002263 | Bulb, Light (Replaces: 3406124) |
|
Immediately | $ 13.66 | ||||
| 39 | W11222979 | Socket, Light (Replaces: W10214261) |
|
Immediately | $ 113.13 | ||||
| 40 | W11226088 | Lens, Drum Light (Replaces: 3402841) |
|
$ 31.09 | |||||
| 41 | W10709380 | Seal, Drum Light |
|
- | |||||
| 42 | W11267102 | Valve And Hose Assembly (Replaces: W11135293) |
|
Immediately | $ 214.19 |
