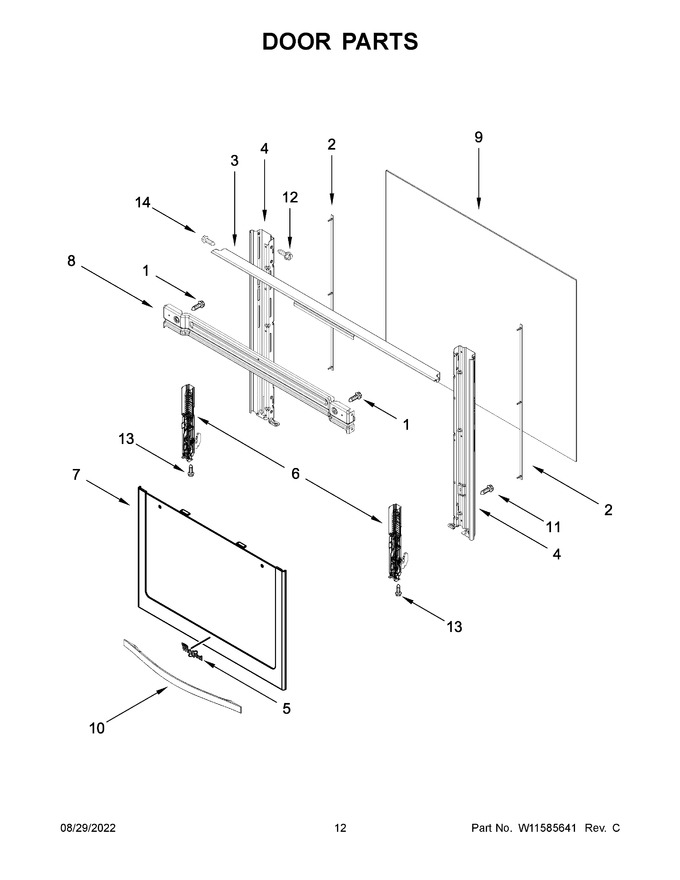

01 - Cover Sheet
02 - Cooktop Parts
03 - Backguard Parts
04 - Manifold Parts
05 - Chassis Parts
06 - Broiler Parts
07 - Door Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11428245 | Screw (stainless) (Replaces: 98005521) |
|
- | |||||
| 2 | W11104748 | Seal, Inner Door (Replaces: W10292266) |
|
- | |||||
| 3 | W11105139 | Upper Trim, Oven Door (Replaces: W10544145) |
|
$ 152.63 | |||||
| 4 | W11209792 | Trim, Side (left) (Replaces: W10445015) |
|
- | |||||
| 5 | W11178521 | Nameplate (grey) (Replaces: W10481433) |
|
Immediately | $ 63.13 | ||||
| 6 | W11240518 | Hinge, Oven Door (Replaces: W10420753) |
|
$ 152.43 | |||||
| 7 | W11176456 | Glass, Outer Door (stainless) (Replaces: W11051158) |
|
$ 479.29 | |||||
| 8 | W11389703 | Cross Support (Replaces: W10387343) |
|
- | |||||
| 9 | WPW10535767 | Glass, Inner (Replaces: W10535767) |
|
$ 291.66 | |||||
| 10 | W10894054 | Handle, Oven Door (stainless) (Replaces: W10831891) |
|
- | |||||
| 11 | W11206744 | Screw (Replaces: 98008699) |
|
$ 14.23 | |||||
| 12 | W10837731 | Screw (Replaces: W10493726) |
|
$ 8.30 | |||||
| 13 | W10837674 | Screw (Replaces: W10146346) |
|
$ 8.05 | |||||
| 14 | WP3400832 | Screw (black) (Replaces: 98006726) |
|
Immediately | $ 8.18 | ||||
| 4A | W11232008 | Trim, Side (right) (Replaces: W10445013) |
|
- |
