SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet Parts


03 - Upper Drawer Parts


04 - Lower Drawer Parts


05 - Unit Parts


06 - Icemaker Parts

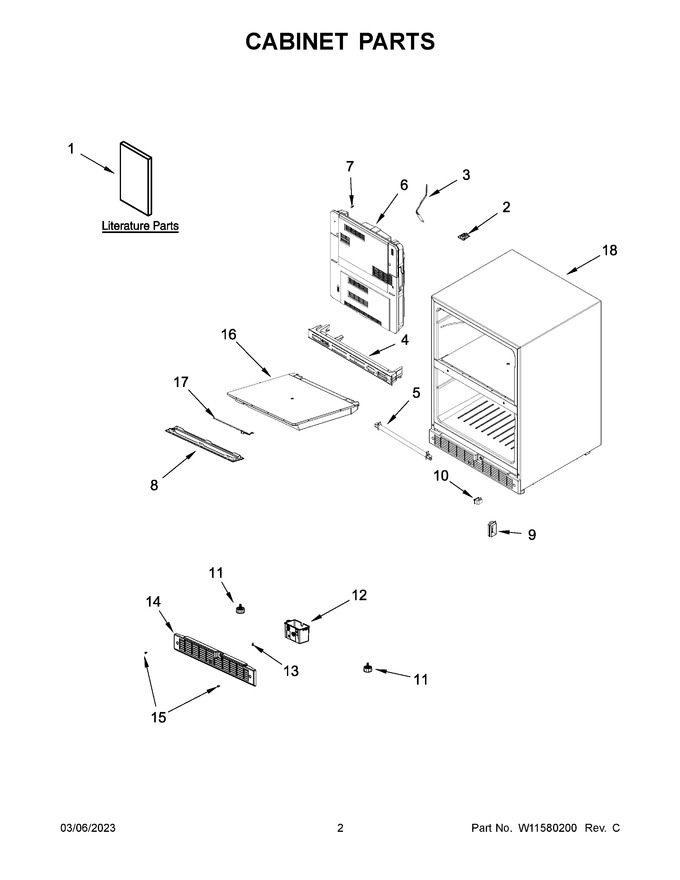

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11533205		Use & Care Guide		Appelez-nous	-
2	W11580230		Connector, Cover		Appelez-nous	-
3	W11359415		Fuse, Temperature				$ 109.28
4	W11580232		Assembly, Trim		Appelez-nous	-
5	W11580231		Defrost Holder And Heater		Appelez-nous	-
6	W11580229		Cover Assembly, Evaporator				$ 441.56
7	W11375760		Screw		Appelez-nous	-
8	W11312450		Cover, Led		Appelez-nous	-
9	W11568783		Switch, Case				$ 22.95
10	W11579510		Switch, Door   (Replaces: W11568786)		Appelez-nous	-
11	W11106296		Leg, Leveling   (Replaces: 4344763)				$ 19.03
12	W11568794		Assembly, Switch Box				$ 192.78
13	W11371097		Screw		Appelez-nous	-
14	W11580233		Kick Plate				$ 83.21
15	W11675284		Screw   (Replaces: W11371095)				$ 15.94
16	W11580290		Assembly, Separator		Appelez-nous	-
17	W11579582		Led   (Replaces: W11568950)				$ 122.97
18	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
1A	W11537003		Energy Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
