View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cooktop Parts
03 - Backguard Parts
04 - Manifold Parts
05 - Chassis Parts
06 - Broiler Parts
07 - Door Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

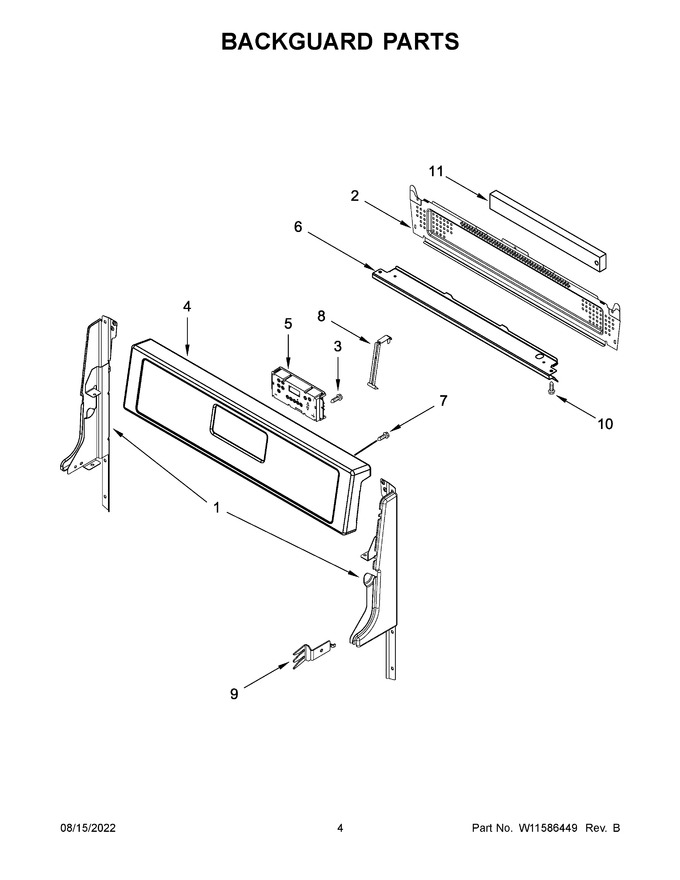

| 1 | W10873441 | Endcap (left Hand) (white) |
|
- | |||||
| 2 | W10588614 | Backguard, Rear (Replaces: W10535808) |
|
- | |||||
| 3 | W10850756 | Screw, Ground (Replaces: 8534079) |
|
$ 8.20 | |||||
| 4 | W11171357 | Panel, Control (white With Overlay) (Replaces: W10874728) |
|
- | |||||
| 5 | W10841331 | Control, Electronic (white) |
|
- | |||||
| 6 | W10535746 | Bracket, Console Mount |
|
- | |||||
| 7 | WP98008544 | Screw (white) (Replaces: 98008544) |
|
$ 13.87 | |||||
| 8 | W11230932 | Bracket, Control (Replaces: W10695491) |
|
Immediately | $ 84.81 | ||||
| 9 | W10535815 | Bracket, Rear |
|
- | |||||
| 10 | W11233072 | Screw (Replaces: 98006632) |
|
Immediately | $ 14.72 | ||||
| 11 | W11133686 | Insulation, Back Guard |
|
- | |||||
| 1A | W10873438 | Endcap (right Hand) (white) |
|
- |
