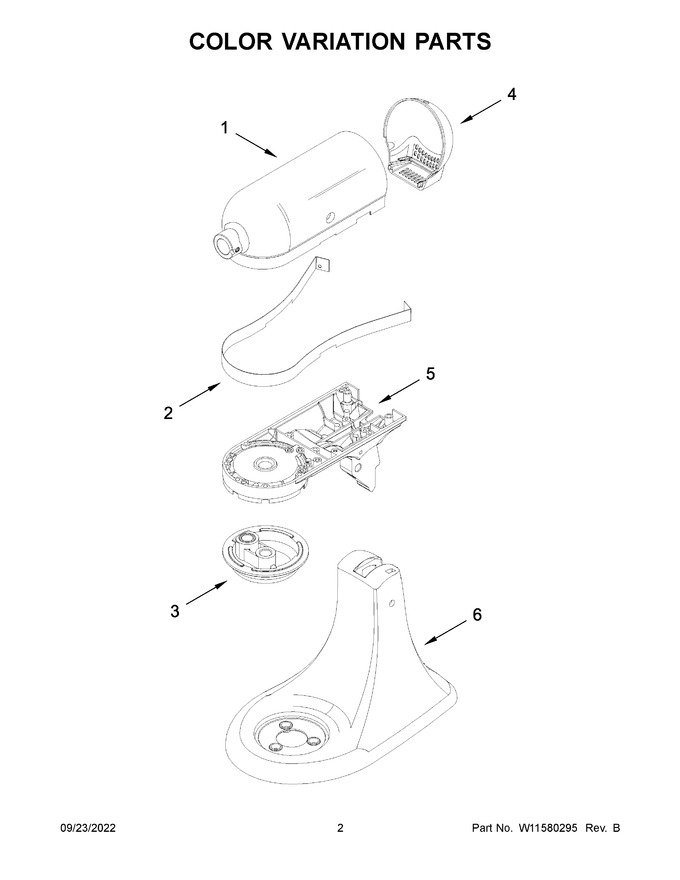

02 - Color Variation Parts
03 - Case, Gearing And Planetary Unit Parts
04 - Motor And Control Unit Parts
05 - Base And Pedestal Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 24029113 | Motor Housing (onyx Black) |
|
- | |||||
| 2 | W11092112 | Trim Band (black) |
|
- | |||||
| 3 | 24028616 | Planetary (onyx Black) |
|
- | |||||
| 4 | 24025314 | End Cover (onyx Black) |
|
- | |||||
| 5 | 24035056 | Lower Gearcase (onyx Black) |
|
- | |||||
| 6 | W11205080 | Pedestal W/feet (onyx Black) (Replaces: 3184275) |
|
- | |||||
| 1A | 2402911 | Motor Housing (white) |
|
- | |||||
| 3A | 2402861 | Planetary (white) |
|
- | |||||
| 4A | 2402531 | End Cover (white) |
|
- | |||||
| 5A | 2403504 | Lower Gearcase (white) |
|
- | |||||
| 6A | WP3184273 | Pedestal W/feet (white) (Replaces: 3184273) |
|
$ 111.28 |
